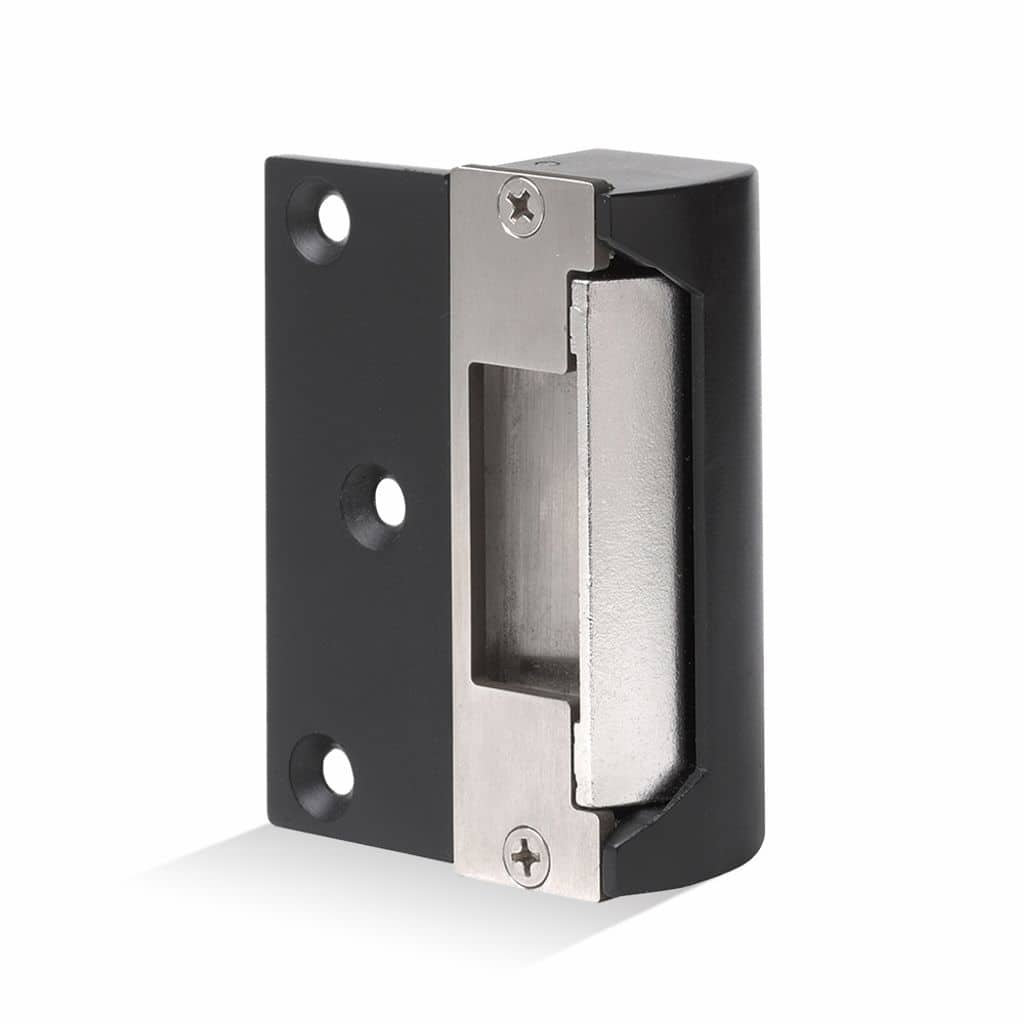

GEM ER350 12V Rim Electric Release
12Vdc Fail-Safe/Fail-Secure Rim Mounted Release
£41.95 exc VAT
- Operating voltage 12Vdc
- Fail-Safe/Fail-Secure(Selectable)
- Rim mounted release
- Voltage tolerance ±15%
- Current draw: 0.25A at 12Vdc, 0.15A at 24Vd (at temperature 20°C)
- Operating temperature: -10~45°C (14 to 131°F)
- Lock’s surface temperature: Current temperature ±20% (when power is on)
- Humidity: 0~95% non-condensing
- 2000lbs jaw strength pull testing
- Tested to 1,000,000 cycles
- Weight: 380g (approx)
DATASHEET
Additional information
| Dimensions | 220 × 32.5 × 62 mm |
|---|
