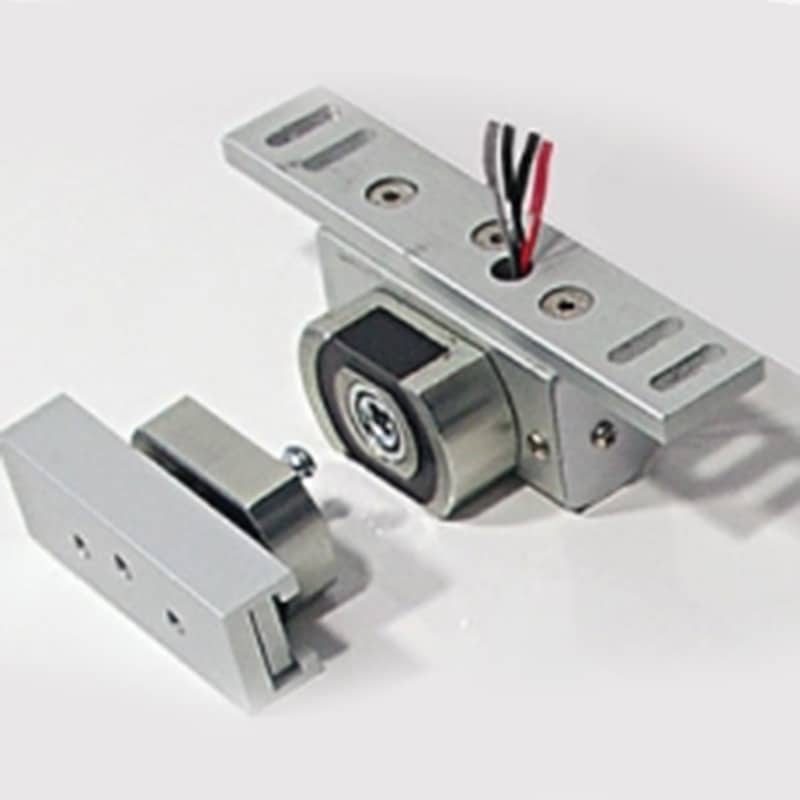

GS105 Gingers Spark Single Micro Power Lock Direct Fix
A Single Micro Power Lock Direct Fix With Standard Fixing Plate. It’S Small Size Makes It Ideal For Automatic Doors Where Space Is An Issue
£216.75 exc VAT
- 680 kg (1500 lb) holding force per lock
- Multiple voltage input - any voltage from 12 vDC to 24 vDC
- Very low current consumption 12 v = 0.28 A and 24 v = 0.14 A
- Early warning alarm EW technology - magnets are fitted with EW pressure sensors able to send an alarm before access forced open with
- 0-30 second timer delay
- Alarm relay input
- PCB is to be located inside the transom, operator or PSU
- Note that the lock body is rounded and has no sharp edges which gives it a different look and is also safer/less hazardous on low height frames
- Armature is on a sliding plate allowing 5 mm travel left and right and 1 mm up and down travel to ensure 100% alignment
- Extremely high quality patented lock and bracket system
- Variants for open out, open in and timber doors
- Comes completely assembled so all you have to do is install it
Dimensions
- 128 mm wide under the transom/reveal
- Lock suspends 40 mm below the transom/reveal
- Armature is 70 mm W x 26 mm
- 2 required for a double door
