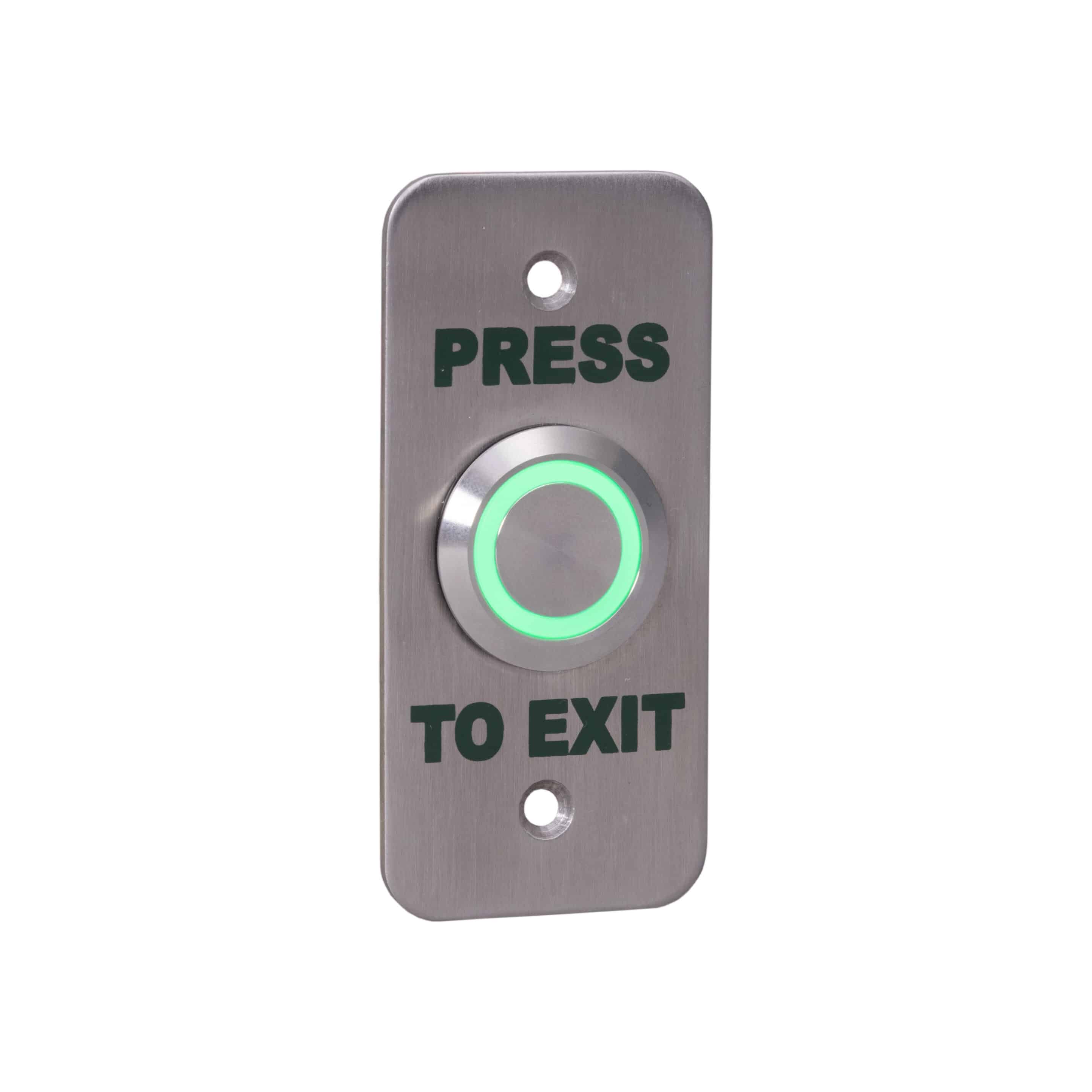

K-AP-ILH-GS/PTE Double Pole Narrow Press To Exit Stainless Steel Switch With Illuminated Piezo Button
Flush Fitting Ip68 Rated Press To Exit Momentary Switch With Stainless Steel Faceplate And Green Illuminated Piezo Button
£17.25 exc VAT
- Contacts: NO/COM Double pole/Double throw
- Input current: 5 Amp @ 30V AC/DC
- Contact resistance: <50m
- Voltage: 12-24VDC
- Wear resistant legend
- Security screws (allen key type)
- Internal or External use
- Button is rated at IP68
- Operating temperature: -40°C to +70°C
Features
- Stainless steel piezo button
- Momentary operation
- LED status: Red / Green / Blue or Yellow (Static)
- No moving parts
- Flush fitting as standard
- Fits on standard RGL Surface Boxes
- Ideal for general/sensitive areas
- Distance between fixing holes 60mm
Dimensions
85H x 35W x 28D (mm)
300g (Boxed)
260g (Unboxed)
Contents
Illuminated Piezo Switch
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Electrical Back Box
