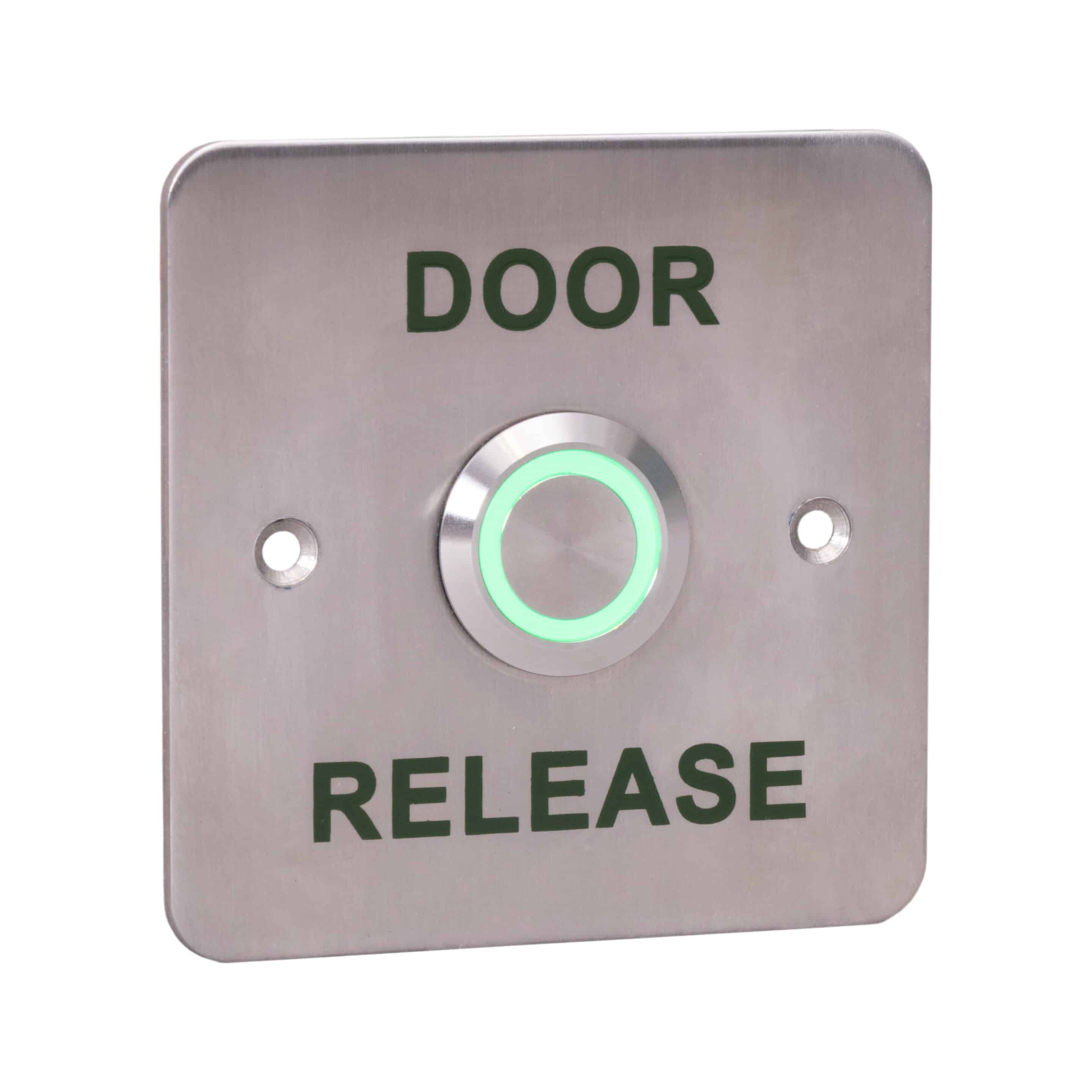

K-ILH-GS/DR Double Pole Door Release Stainless Steel Switch With Illuminated Piezo Button
Flush Fitting Ip68 Rated Press To Exit Momentary Switch With Stainless Steel Faceplate And Green Illuminated Piezo Button
£17.25 exc VAT
- Contacts: NO/NC
- Double Pole / Double Throw
- Contact rating: 5A @240VAC
- Contact resistance: <50mΩ
- Voltage: 12-24VDC
- Wear resistant legend
- Security screws (allen key type)
- Internal or External use
- Button is rated at IP65
- Operating temperature: -10°C to +50°C
Features
- Stainless steel illuminated button
- Momentary operation
- LED status: Green (Static)
- Flush fitting as standard
- Fits on standard RGL Surface Boxes
- Ideal for general/sensitive areas
- Distance between fixing holes 60mm
Dimensions
85H x 85W x 28D (mm)
300g (Boxed)
260g (Unboxed)
Contents
Illuminated Piezo Switch
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Electrical Back Box
DATASHEET
