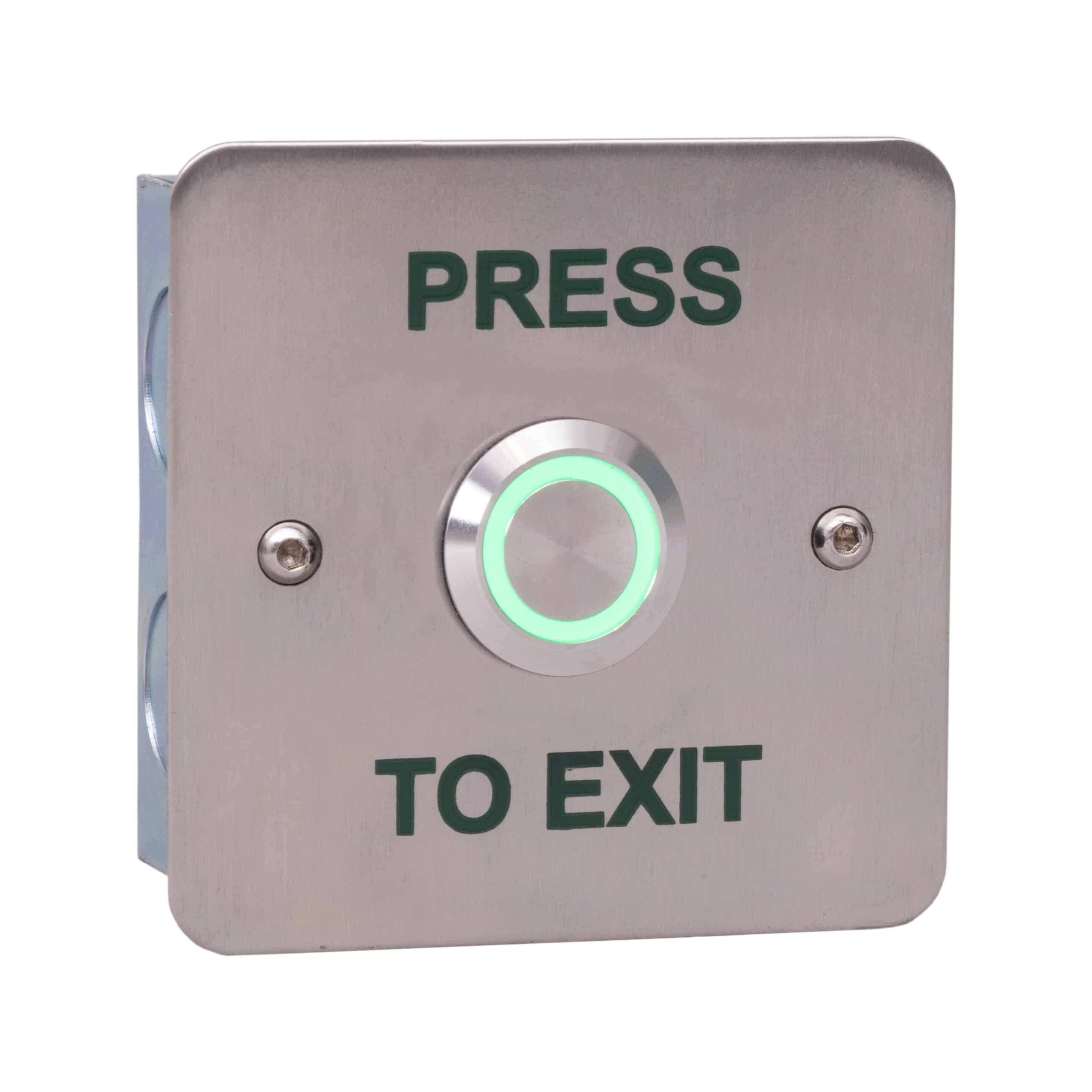

K-ILH-GS/PTE Double Pole Press To Exit Stainless Steel Switch With Illuminated Piezo Button
Flush Fitting Ip68 Rated Press To Exit Momentary Switch With Stainless Steel Faceplate And Green Illuminated Piezo Button
£17.25 exc VAT
- Contacts: NO/NC
- Double Pole / Double Throw
- Contact rating: 5A @240VAC
- Contact resistance: <50mΩ
- Voltage: 12-24VDC
- Wear resistant legend
- Security screws (allen key type)
- Internal or External use
- Button is rated at IP65
- Operating temperature: -10°C to +50°C
Features
- Stainless steel illuminated button
- Momentary operation
- LED status: Green (Static)
- Flush fitting as standard
- Fits on standard RGL Surface Boxes
- Ideal for general/sensitive areas
- Distance between fixing holes 60mm
Dimensions
85H x 85W x 28D (mm)
300g (Boxed)
260g (Unboxed)
Contents
Illuminated Piezo Switch
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Electrical Back Box
DATASHEET
