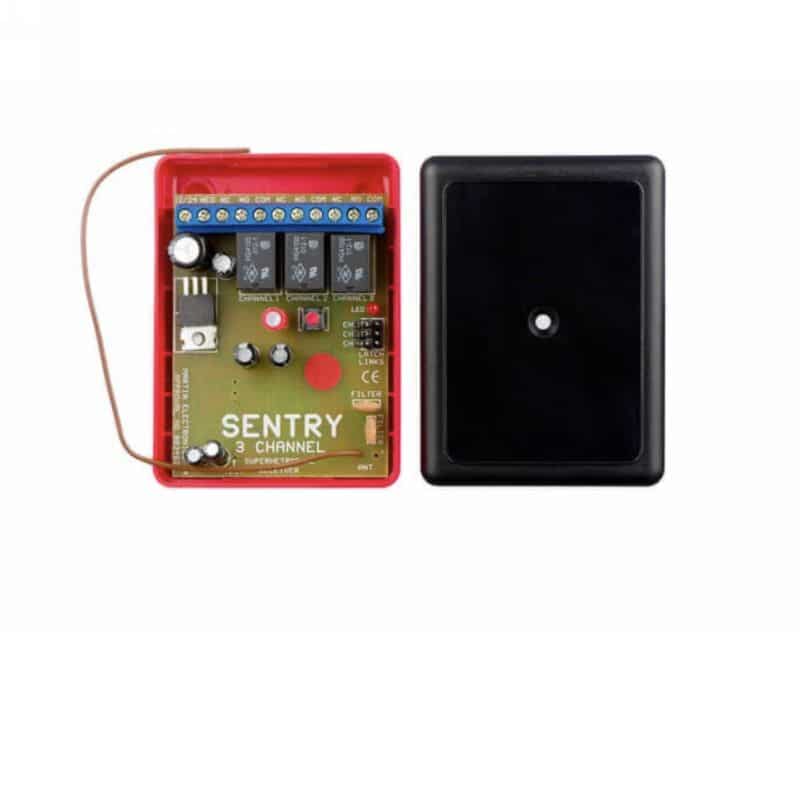

LOCKEY Digital Sen_R_R3_Td Sentry 3 Channel Receiver French Rolling Code

• 1 & 3 channel
• 433.92 MHz
• Surface mounted technology
• SAW resonator stabilised
• Latch/pulse selectable
• Normally opened/normally closed contacts
• AC or DC
• External power12 to 24v required
• Sensitivity 11 OdBm +
• Potential free relay outputs
• Change over
• 3 Amp maximum for 3 CH 10m Amp maximum for 1 CH UHF
  * French Rolling transmitters & receivers are not compatible Code Hopping.

Features

• Total convenience
• Quality and reliability
• Eliminating the need for excessive wiring (keeping installation and maintenance costs down)
• Fob transmitters, 1, 3 & 4 channel
• Easy to program (enter and delete users)
• The ease of opening and closing doors, raising and lowering barriers and shutters
• To assist the lesser able
• Calling attention in a panic situation
• Activating various types of alarms
• Used as an accessory with many different electrical products both in industry and in the home
• Always having the switch in your hand, pocket or around your neck
• Sentry remote have all UK & European approvals EN 300 220-1, MPT 1340 & MPT 1344, BAPT ZV 125 & ETS 300 683

DATASHEET

SEN_R_R3_TD
