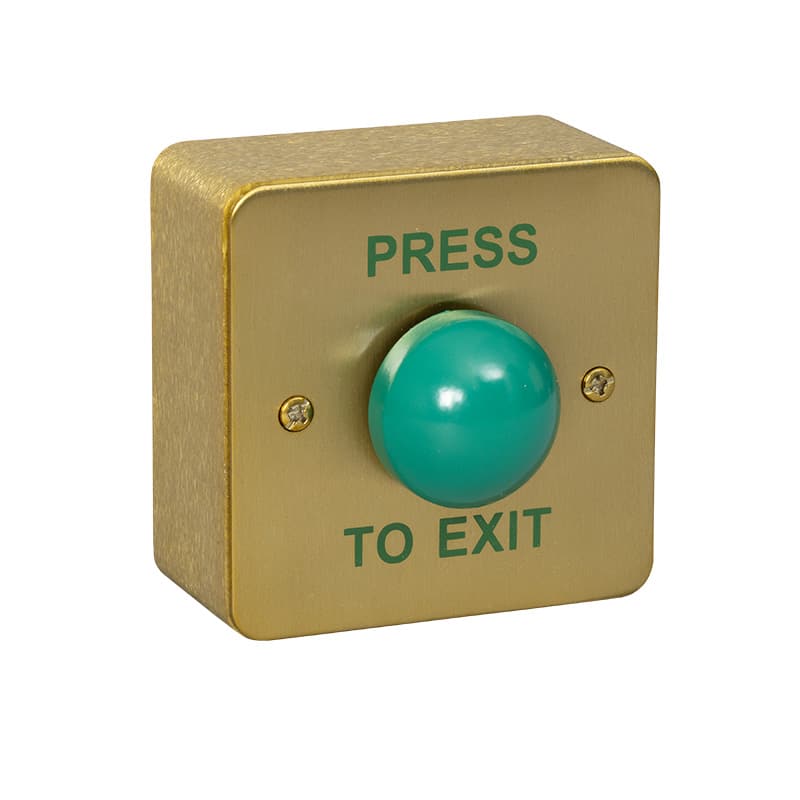

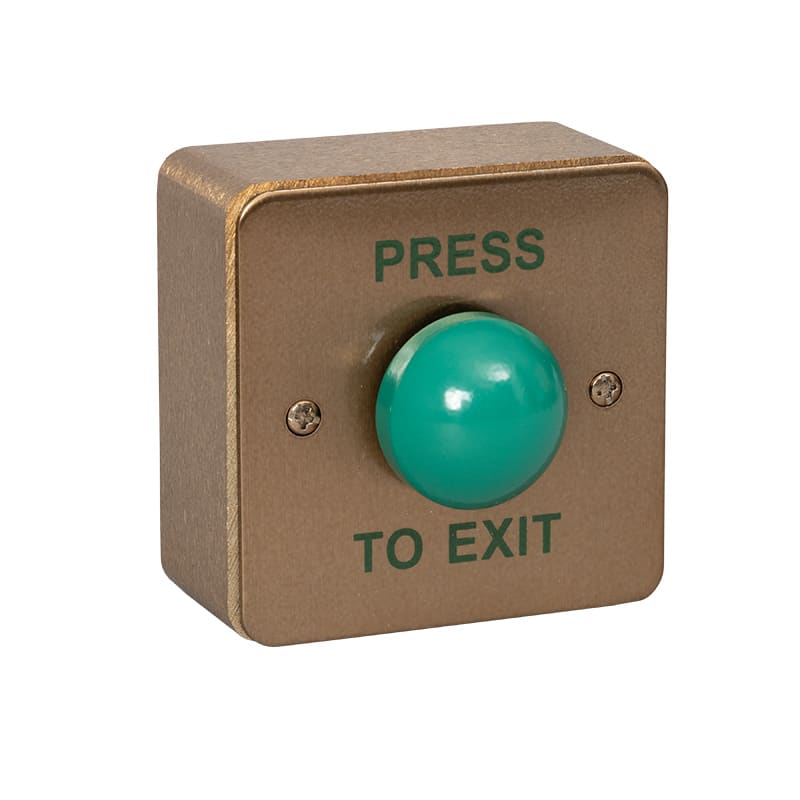

MEXT-EBGB/PTE Press To Exit Door Release Switch With Large Metal Green Dome Exit Button
Surface Or Flush Fitting Double Pole Momentary Exit Switch With Dark Bronze Finish Faceplate And Metal Green Dome Exit Button
Price range: £26.25 through £43.85 exc VAT
- Contacts: Double pole NONC
- Output: 4 AMP contact @ 30V ACDC
- Wear resistant legend
- High impact aluminium extrusion
- Vandal resistant
- Internal or External use
- Button rated IP66 ingress protection
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
Features
- Large metal green button
- Momentary operation / contact
- Can be surface (MEXT) or flush fitting (MKOBO)
- Easy clean surface
- Ideal for general / sensitive areas
- Screw footprint for flush fitting onto standard back box
- Distance between fixing holes 60mm
- Anti rotational mounting
Dimensions
- 85H x 85W x 38D (mm)
- 360g (Boxed) 318g (Unboxed)
Contents
Green Dome Exit Button
Stainless Steel Plate (2mm)
2 Screws
Surface Aluminium Extrusion (MEXT)
DATASHEET
Additional information
| Dimensions | 85 × 85 × 38 mm |
|---|---|
| RAL Colours | MATT BLACK, MATT BRONZE, DARK BRONZE, MID BRONZE, LIGHT BRONZE, SATIN COPPER, SATIN BRASS |
