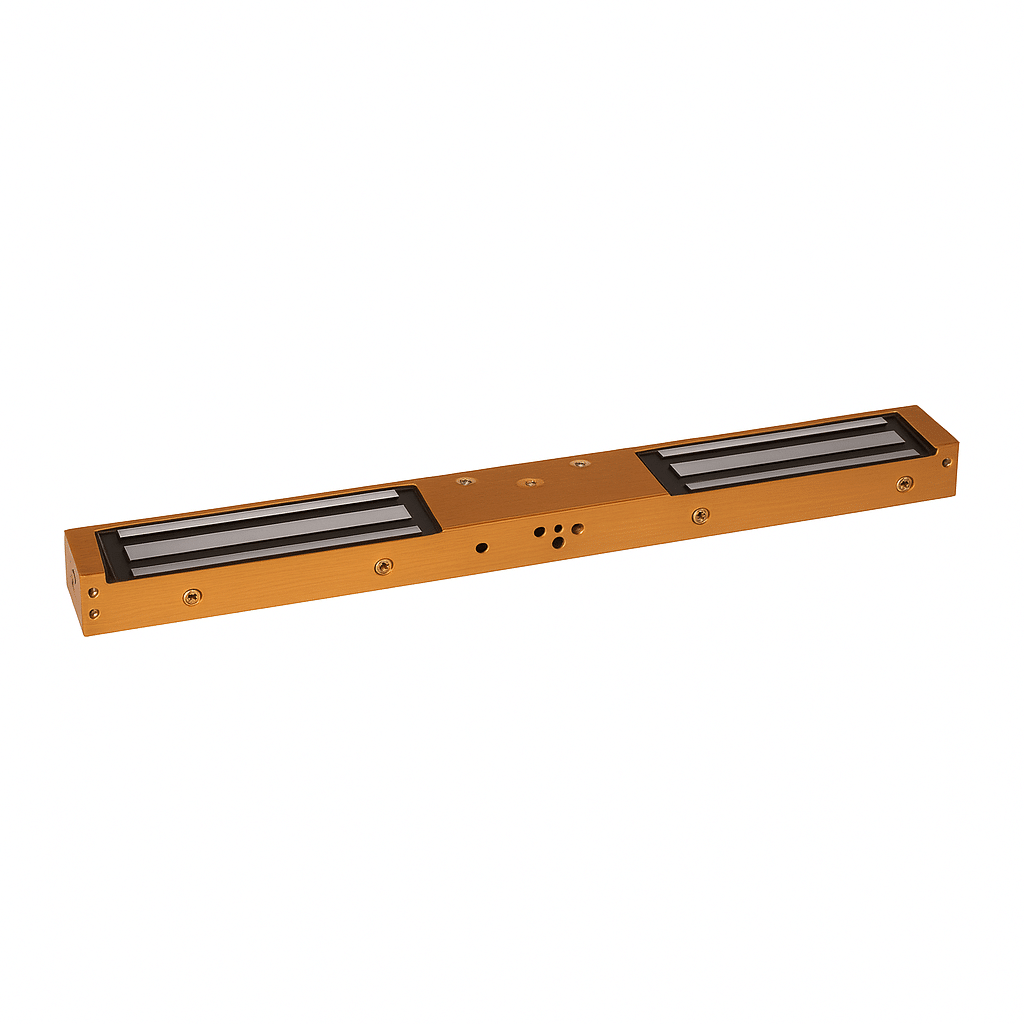

ML600-D-MDS Ral Fire-Rated Monitored Slimline Double Maglock With Door Status 600Lb/272Kg X 2)
Price range: £112.95 through £177.85 exc VAT
- Aluminium housing
- Dual voltage 12/24 VDC @ 480/240mA x 2
- 280kgs (600lb) holding force x 2
- Built in surge protection
- Surface mount
- Fail safe operation (power to lock)
- +/- 15% voltage tolerance
- -10° to +50° operating temperature
- Push off release pin on armature
- Monitored (Lock Monitoring)
- Voltage free relay contacts
- Door Status Monitoring
- (Lock monitoring checks Maglock is reporting itself as locked;
Door status monitoring has a contact that works independantly
from Maglock and shows if the door is open or closed)
Features
- FIRE-RATED (30, 60, 90 & 120 min timber door set)
- Slimline mini magnet
- Clean and compact design
- No residual magnetism
- Status LED indication on ML600-D-MDS
- Suitable Brackets/Housings:
BK600-D-ZL (Double ZL bracket)
BK600-D-L (Double L Bracket)
BK600-D-FL/AB (Architectural FL) x 2
AB600ZL-DC (Architectural ZL) x 2
AB600CL (Architectural L) x 2
AH600 (Required for Fire Doors) x 2
BK600U (Glass door bracket) x 2
GD600ZL (Glass Door ZL) x 2
Dimensions
500x42x25 (mm) Maglock
180x38x13 (mm) Armature x 2
3.94kg Boxed
2.26kg Unboxed
Contents
Double slimline mini magnet (600lb)
Armature plate x 2
600GB fixing kit x 2
Instructions
Armature fixing template
DATASHEET
Additional information
| Dimensions | 500 × 42 × 25 mm |
|---|---|
| RAL Colours | MATT BLACK, MATT BRONZE, DARK BRONZE, MID BRONZE, LIGHT BRONZE, SATIN COPPER, SATIN BRASS |
