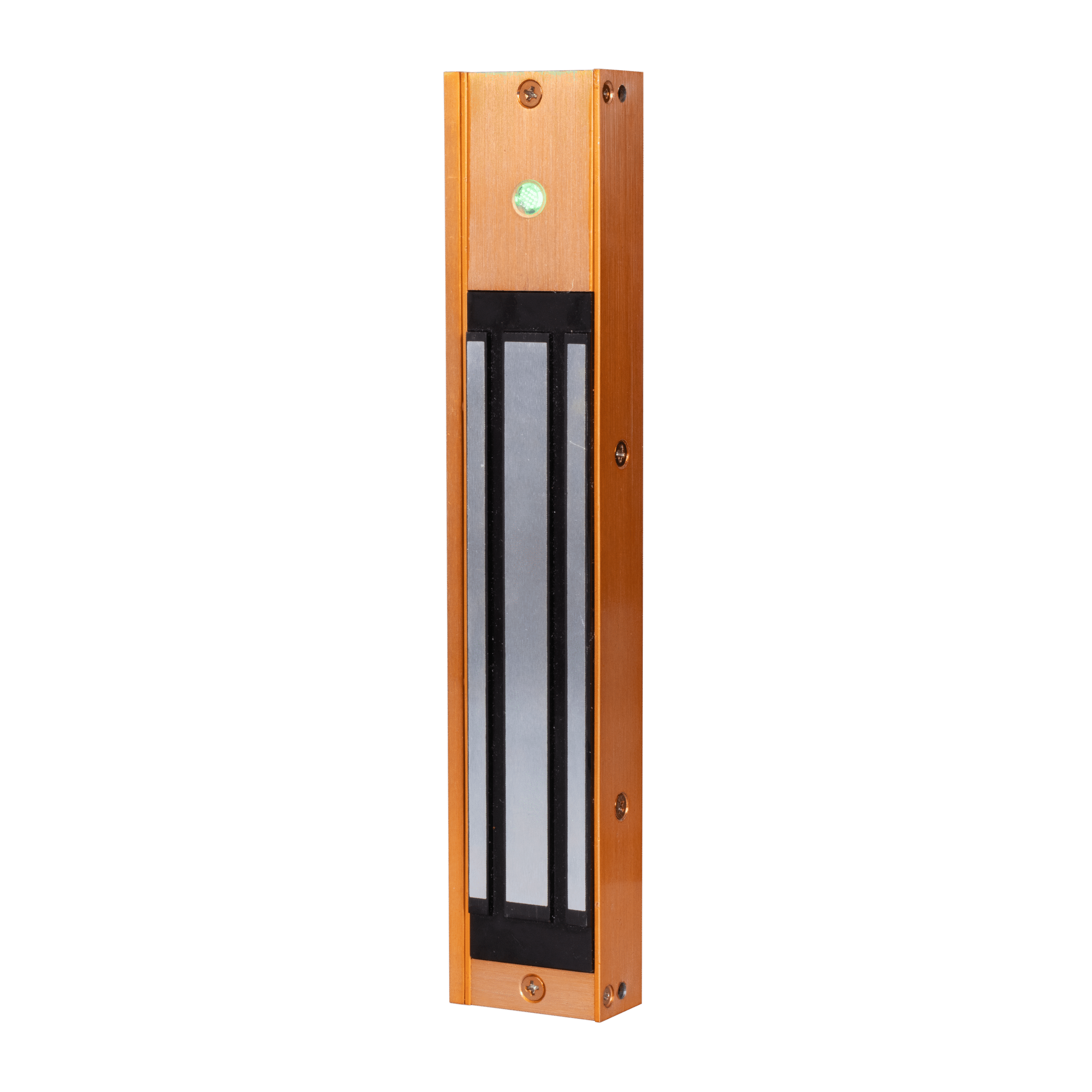

ML600 Ral Fire-Rated Slimline Maglock (600Lb/272Kg)
Slimline Maglock With 600Lb/272Kg Holding Force
£62.25 exc VAT
- 272kgs (600lb) holding force
- Dual voltage 12/24 VDC @ 480/240mA
- +/- 15% voltage tolerance
- Built in surge protection
- Aluminium housing
- Surface mount
- Fail safe operation (power to lock)
- -10° to +50°c operating temperature
- Push off release pin on armature (adjustable)
Features
- FIRE-RATED (30, 60, 90 & 120 min timber door set)
- Slimline magnet
- Clean and compact design
- No residual magnetism
- Power LED indication on ML600 (Red LED only)
Dimensions
- 250x48x25 (mm) Maglock (LxWxD)
- 180x38x13 (mm) Armature (LxWxD)
- 1.97kg Boxed
- 1.13kg Unboxed
Contents
Slimline magnet (600lb)
Armature plate
600GB fixing kit
Instructions
Armature fixing template
DATASHEET
Additional information
| Dimensions | 250 × 48 × 25 mm |
|---|---|
| RAL Colours | MATT BLACK, MATT BRONZE, DARK BRONZE, MID BRONZE, LIGHT BRONZE, SATIN COPPER, SATIN BRASS |
