NICE B-Fab5024-Dkit 24Vdc Underground Kit Double Swing Gates 5M
£1,535.00 exc VAT
- Reliable and resistant: motors made up of solid internal parts in metal and bronze alloy
- Simple to use: mechanical stop system on closure. Standard opening max. 110 degrees, optional opening 360 degrees
- The 24Vdc version with magnetic encoder and new control unit, Moonclever (MC824H), is equipped with BlueBUS technology
- Totally compatible with the previous Metro series
| Battery Backup Option | Yes |
| BlueBus | Yes |
| IP Rating | 67 |
| Max Gate Leaf Length | 5.0m |
| Max Speed | 0.8rpm |
| Motor Voltage | 24Vdc |
| Solar Power Option | Yes |
| Work Cycle | 45% |

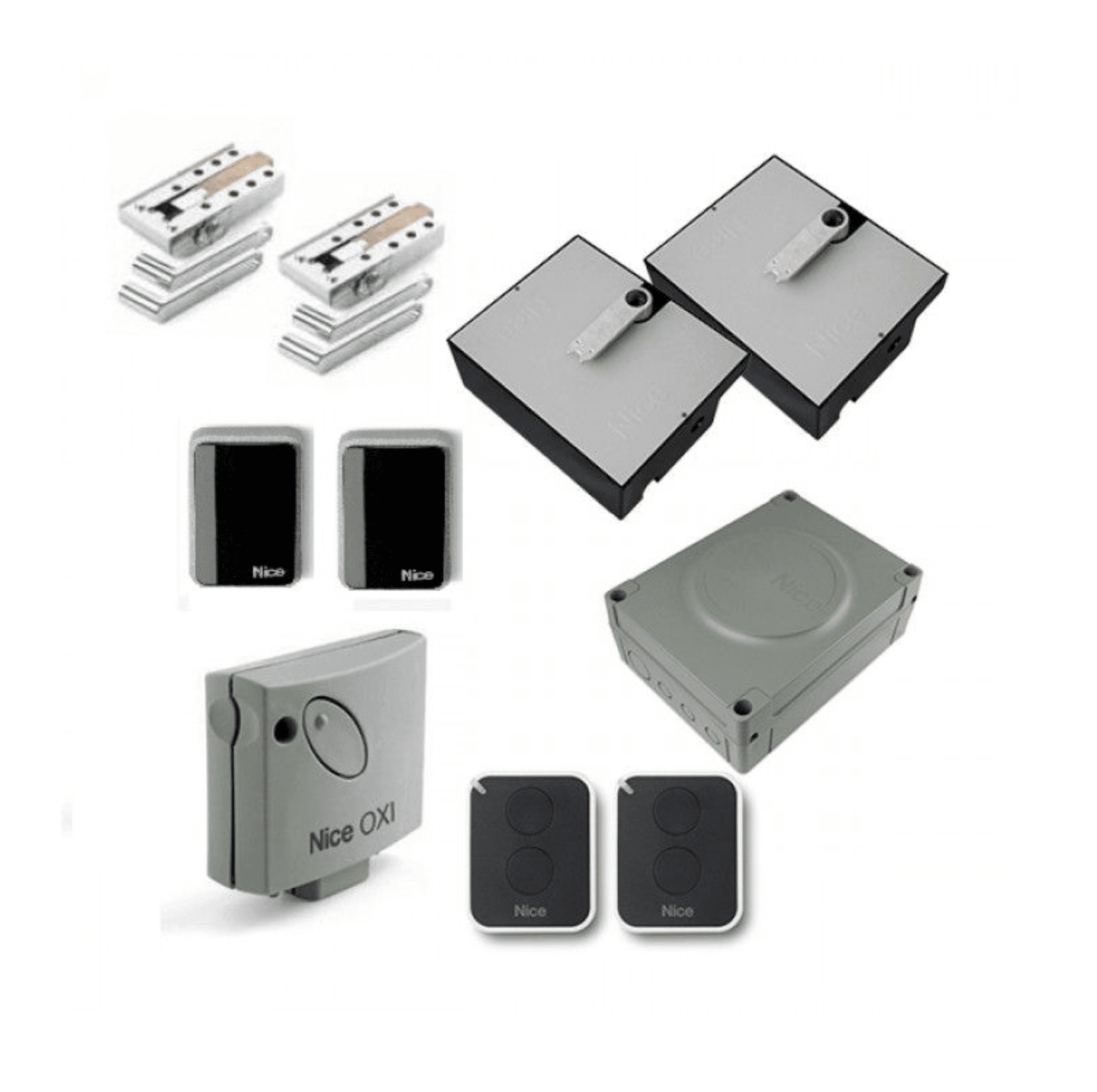

Contents
- 2 x BFAB5024 24Vdc irreversible electromechanical gear motors, with a magnetic encoder
- 2 x BFABBOX Chamfered Foundation Box with a mechanical stop on opening for Fab operators with a Cataphoresis paint finish. Highly Resistant to corrosion
- 2 x MYGO4 transmitters 433.92 MHz, 4 channels
- 1 x MC824H control unit for two motors, with a 24Vdc encoder
- 2 x EPMB outdoor photocells designed for connection via the Nice BlueBUS
- 1 x OXI receiver of up to 4 channels, with connector, without built-in transmitter
- 1 x BMA3 Lever-type unlock system
