NICE Hoppbdkce 24Vdc Articulated Arm Kit Double Swing Gates 2.4M
£775.00 exc VAT
- Easy to install thanks to a new fixing bracket with a quick connector for the motor
- Two irreversible 24Vdc motors with micrometric adjustment and mechanical stops on opening and closing
- With built-in control unit (HK7124) and without control unit (HK7224)
- Powerful motors with 250 Nm torque
- Resistant and compact: 180 mm wide and ideal for any post
- Small shockproof body with aluminium base
- Sturdy, aluminium anti-shearing arm
- No welding
- Sophisticated electronics with the built-in control unit, just 3 keys to manage all programming operations
| Battery Backup Option | Yes |
| BlueBus | Yes |
| IP Rating | 54 |
| Max Gate Leaf Length | 2.4m |
| Max Gate Weight | 250Kg |
| Max Speed | 1.68rpm |
| Motor Voltage | 24Vdc |
| Solar Power Option | Yes |
| Work Cycle | 35 |

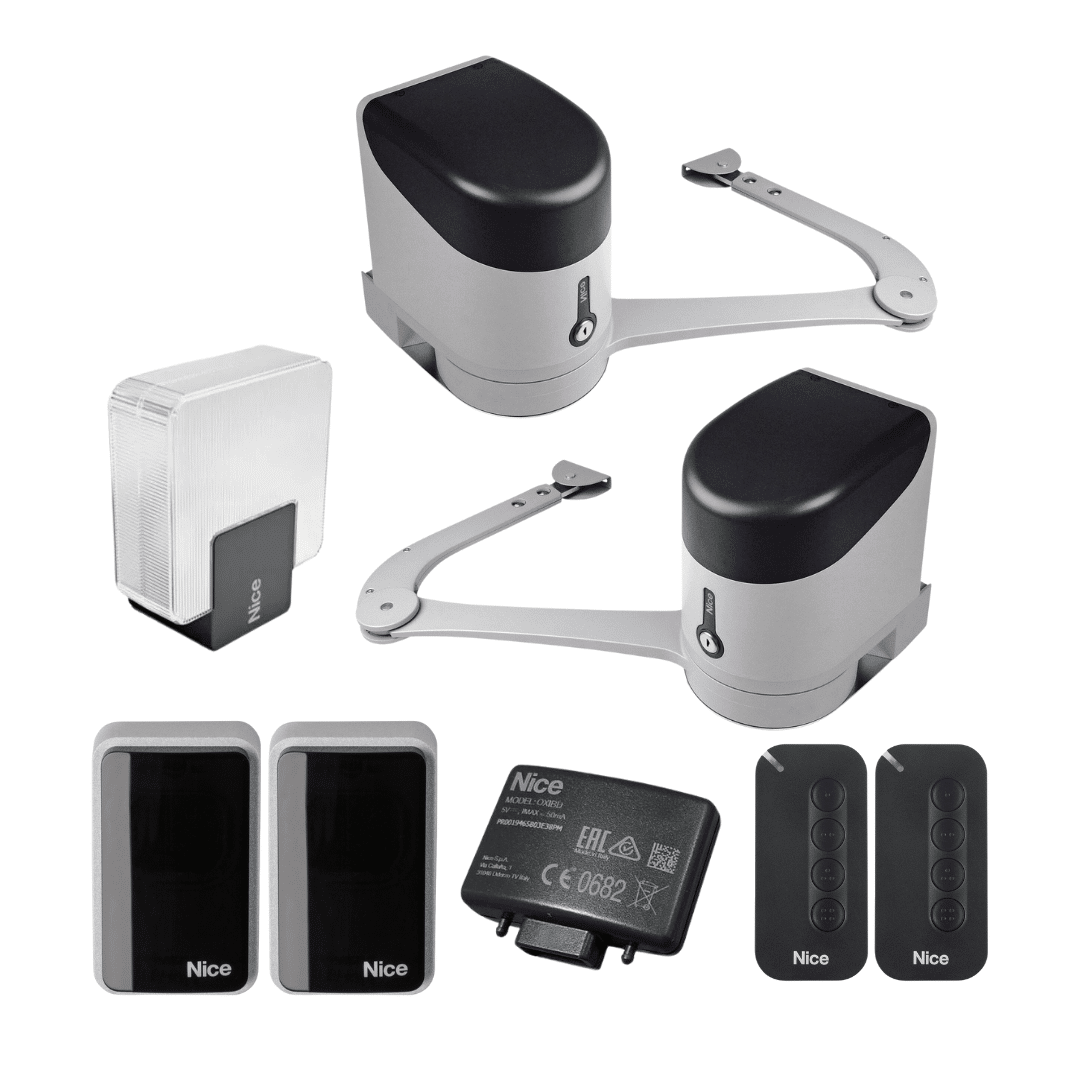

Contents
- 1 x HO7124 + HO7224 electromechanical gear motors for external mounting
- HO7124 (with control unit and plug-in receiver)
- HO7224 (without control unit)
- OXI receiver up to 4 channels with connector
- 2 x MYGO4 433.92 MHz, 4 channel transmitter
- 2 x EPMB photocells with provision for connection via Nice BlueBUS
