NICE S-Fab2024 24Vdc Underground Kit Double Swing Gates 2.3M
Ultra-Compact Underground Installation For Swing Gate Leaves Up To 2.3M
£1,042.50 exc VAT
- This compact foundation box is sturdy and discreet, with a height of only 81 mm. Steel with a cataphoresis paint finish guarantees optimal resistance to corrosion, and the 2.5 mm thickness guarantees strength. All this is in just 52 mm of protrusion from the ground
- Practical and quick installation: thanks to the exit lever on the gear motor attached directly to the leaf
- Mechanical limit switches are adjustable on opening and closing
- Opening up to 180 degrees as standard
- Reliable and sturdy, the gear motor is made of die-cast aluminium, IP67-pressure, and suspended inside the housing to enable deposit drainage, ensuring optimal water resistance
- A practical release is easy to operate from inside and outside, acting directly on the gear motor, and is easy to operate through a special key
- New control unit Moonclever MC424L
- built-in radio receiver
- simple programming, through a single key
- automatic memorisation of limit switches on opening and closing with self-learning function
- programming of pause time
- pedestrian pass door
- deceleration on opening and closing
- obstacle detection system
- provision for connection of the latest generation resistive sensitive edges
- operation in the event of a power failure through optional rechargeable batteries (PS124) with a compartment in the control unit
| Battery Backup Option | Yes |
| IP Rating | 67 |
| Max Gate Leaf Length | 2.3m |
| Max Speed | 1.25rpm |
| Motor Voltage | 24Vdc |
| Solar Power Option | Yes |
| Work Cycle | 60 |

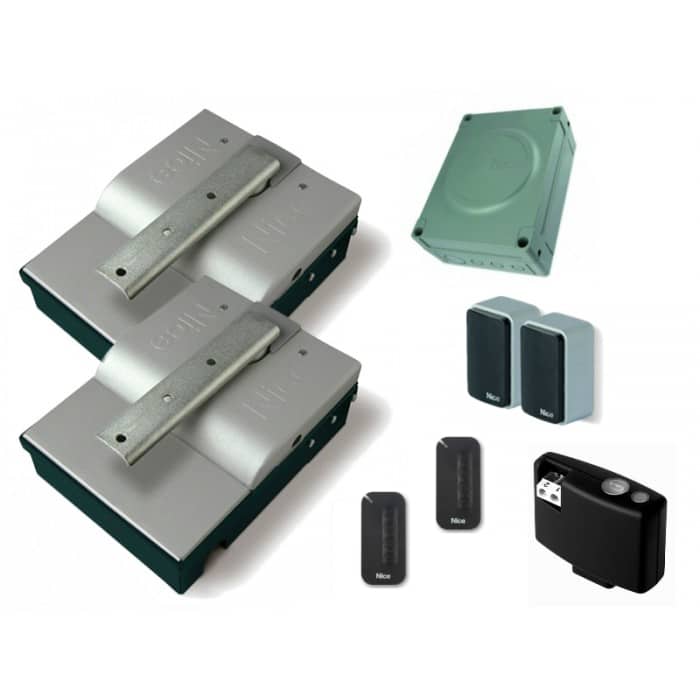

Contents
- 2 x SFAB2024 24Vdc underground motors
- 2 x SFABBOX Foundation Box
- 2 x MYGO4 transmitters 433.92 MHz, 4 channels.
- 1 x MC424L control unit with a built-in radio receiver
- 1 x OXIBD Bi-directional receiver
- 2 x EPM outdoor photocells for outdoor installation
DATASHEET
