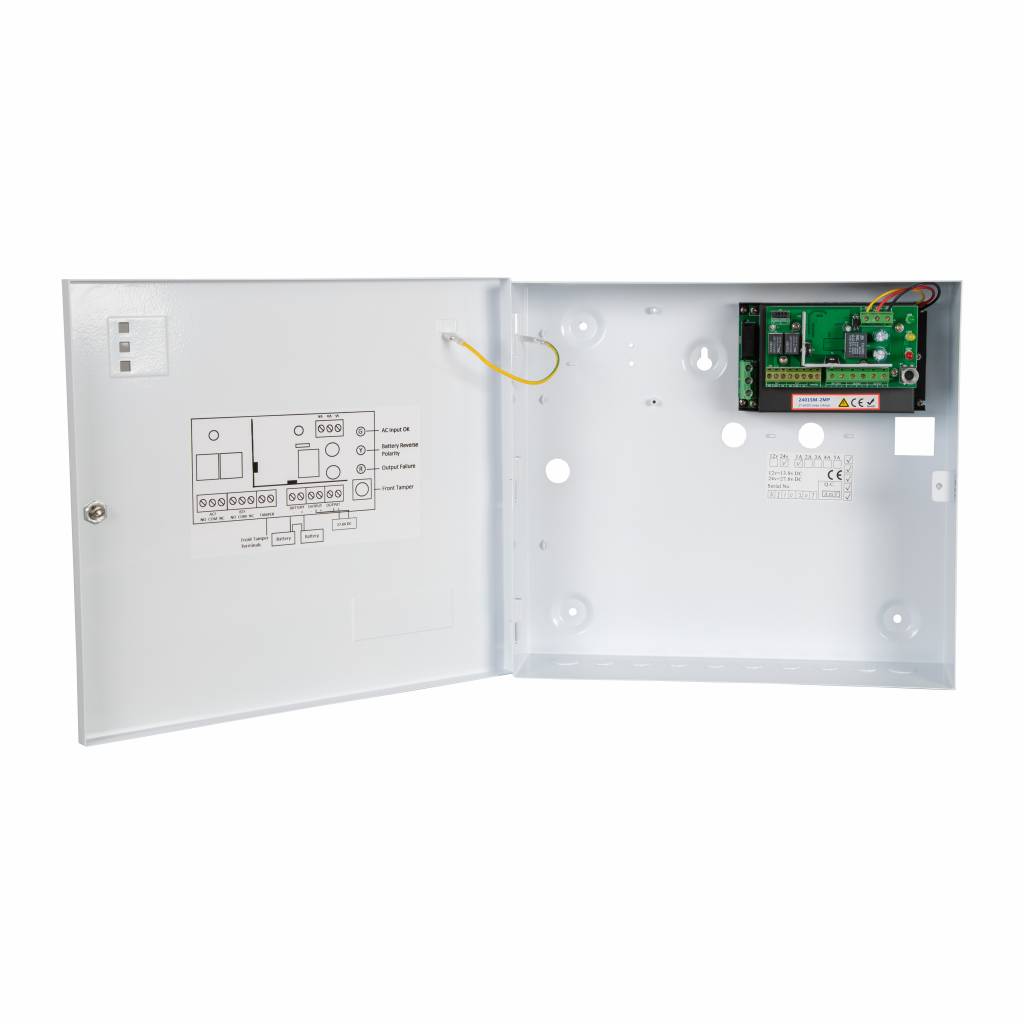

RGL 1203Sm-2Mp 12V 3Amp Monitored Power Supply

• Full current to load
• 13.8VDC regulated output
• Additional battery charging current
• Deep discharge battery protection
• Internal current limiting
• Short circuit protection with auto restart
• 230V fused input
• Mains transient protection
• Compliant to EMC EN61000-6-1 & 3
• Available in 2, 3 and 5 AMP
• Fault outputs:
• Mains fail
• Battery missing
• Voltage free terminals for Front Tamper

Features

• Switchmode technology
• Constructed in a modular arrangement
• Mild steel construction
• White powder coated
• LED Indicators (mains, batt, output)
• Separate fused main connectors
• Full electronic protection
• Onboard tamper protection
• Converts power more efficiently
• Multiple cable entry
• Wiring instructions included
• Allows for 1 x 9aH batteries
• 12VMPB - used in 2 & 3Amp PSUs
• 12VMPB-5 - used in 5Amp PSUs

Dimensions

310H x 340W x 80D (mm)
3.07Kg Boxed
2.84Kg Unboxed

Contents

Power Supply Unit
2 x Battery Leads (1 x Red, 1 x Black)
1 x Earth Lead - Connected

DATASHEET

1203SM-2MP
