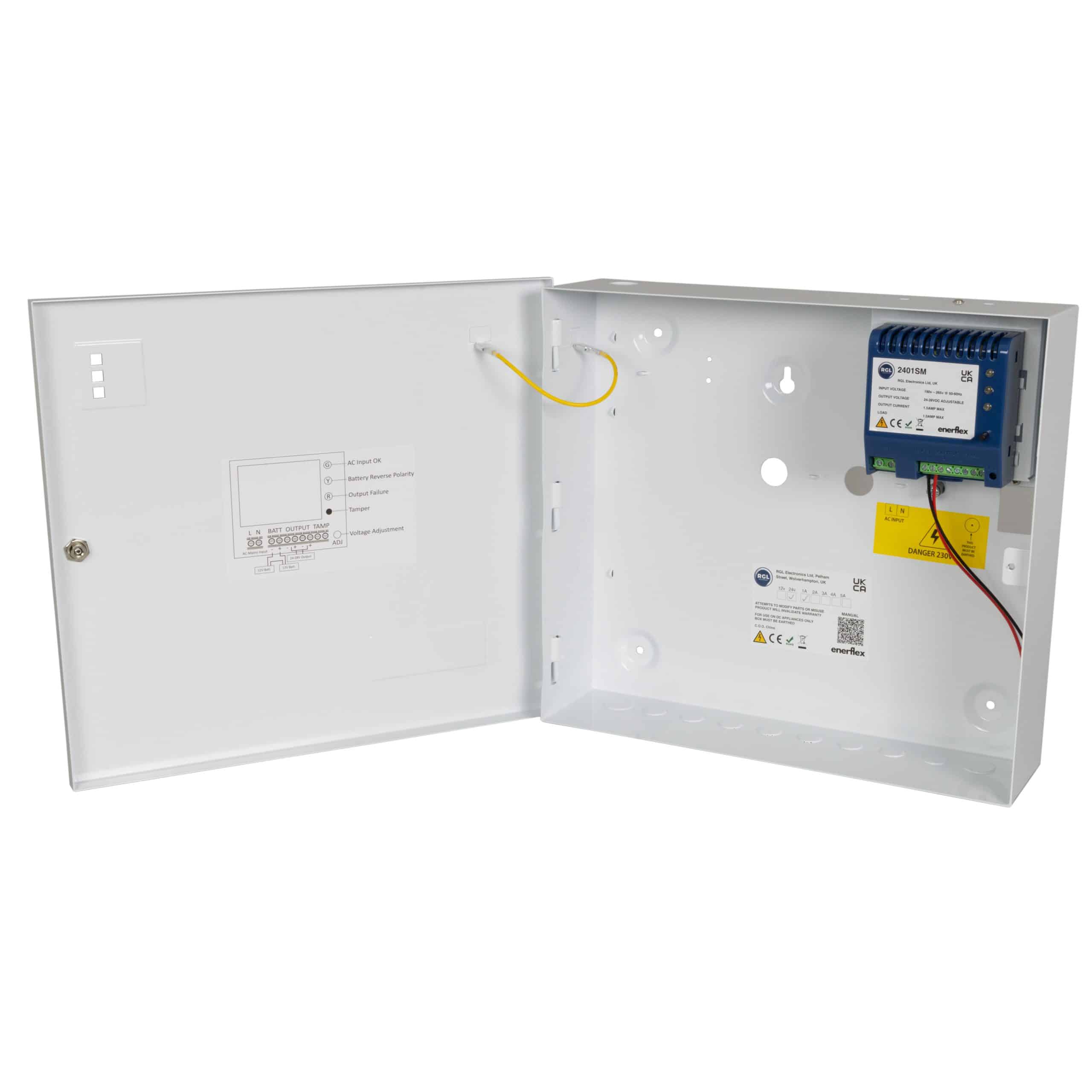

RGL 2401SM-2 24V 1Amp Boxed Power Supply

• Full current to load
• 27.6VDC regulated output
• Additional battery charging
• Deep discharge protection
• Current limiting
• Short circuit protection
• 230V fused input
• Mains transient protection
• Compliant to EMC EN61000-6-1 & 3
• Available in 1, 2, 3 and 5 AMP
• All new 24V RGL PSUs can be upgraded to mains
  and battery monitoring through a replaceable
  board. (Part code 24VMPB)

Features

• Switchmode technology
• Constructed in a modular arrangement
• Allows for quick upgrade to Monitored PSU
• Mild steel construction
• White powder coated
• LED Indicators (mains, batt, output)
• Separate fused main connectors
• Full electronic protection
• Onboard tamper protection
• Converts power more efficiently
• Multiple cable entry
• Wiring instructions included
• Allows for 2 x 9aH batteries

Contents

Power Supply Unit
2 x Battery Leads (1 x Red, 1 x Black)
1 x Earth Lead - Connected
1 x Battery connecting lead

DATASHEET

2401SM-2
