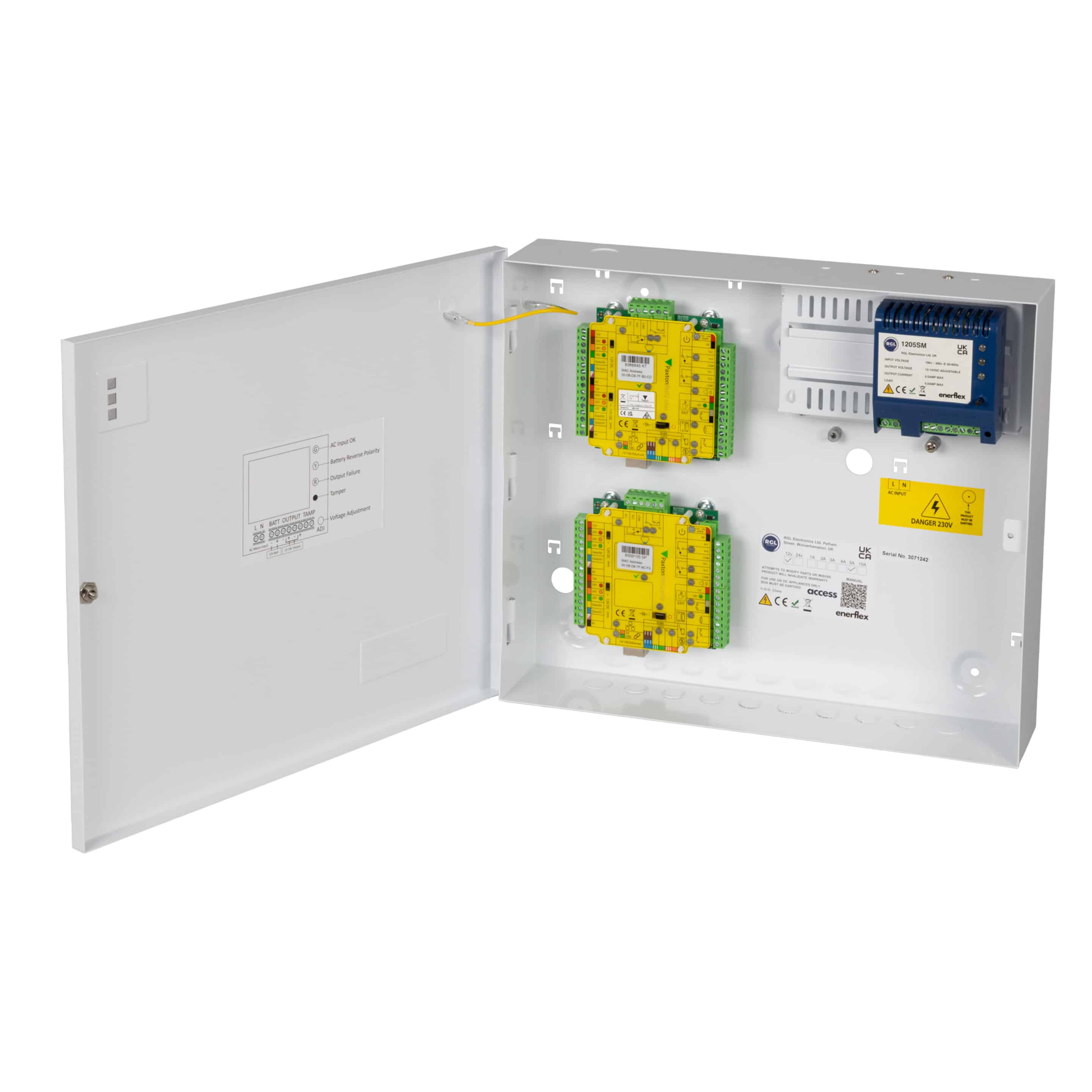

RGL 2ACCESS-12 Enerflex 12V 5Amp Power Supply

• Enerflex 13.8v 5amp DIN Rail mountable PSU
• Full current to load
• 12-14VDC adjustable voltage output
• Additional battery charging
• Deep discharge protection
• Current limiting
• Short circuit protection
• 230V fused input
• Mains transient protection
• Compliant to EMC EN61000-6-1 & 3
• Up to 92% energy efficiency (reduced running costs and lower power usage)
• RL04 (Included)
• 4 way fused output module to allow control boards to be individually fused

Features

• Switchmode technology
• Din rail design for greater versatility
• Mild steel construction
• White powder coated
• LED Indicators (mains, batt, output)
• Separate fused main connectors
• Full electronic protection
• Onboard tamper protection
• Converts power more efficiently
• Multiple cable entry
• Allows for 2 x 7/9aH batteries (SM-2)
• MSO-8 x 1 (Included)
• 8 x Magnetic standoffs for universal positioning of control board

DATASHEET

2ACCESS
