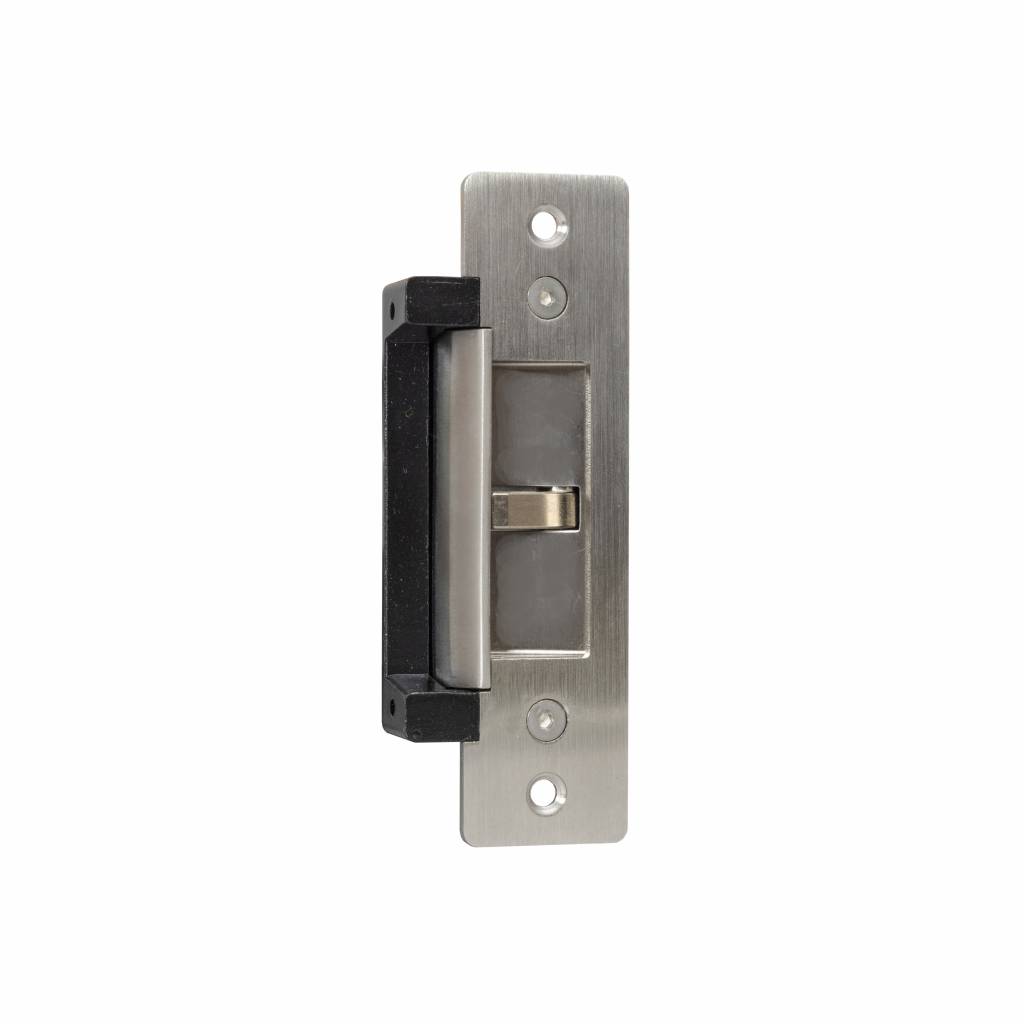

RGL As900M Monitored Electric Release

• Monitored (NO/COM/NC Contacts)
• Fail Safe (Power to Lock/Fail Secure (Power to Open)
• Selected by adjustment at rear of unit
• Comes with Short and Long Faceplate
• Holding force: 1500lb/680kg
• 12VDC/24VDC Selectable Current: 12V 280mA 24V 140mA

Features

• Comes with Short and Long Faceplate
• 124 x 32 x 43 (mm) Short Plate
• 201 x 32 x 43 (mm) Long Plate
• Use with access and door entry systems Monitored (NO/COM/NC Contacts)
• Suitable for metal / timber applications
• Fail Safe (Power to Lock)
• Fail Secure (Power to Open)
• Selected by adjustment at rear of unit
• Stainless Steel Plate (3mm Thick)
• Bull nose corners
• Unbranded faceplates

Dimensions

124x32x43 (mm) Short Plate
201x32x43 (mm) Long Plate
514g (Boxed)
314g (Unboxed)

Contents

Ansi Strike (with short plate fitted)
Diode
2 x Brackets (metal fixings)
4 x Screws
Long Plate

DATASHEET

AS900M
