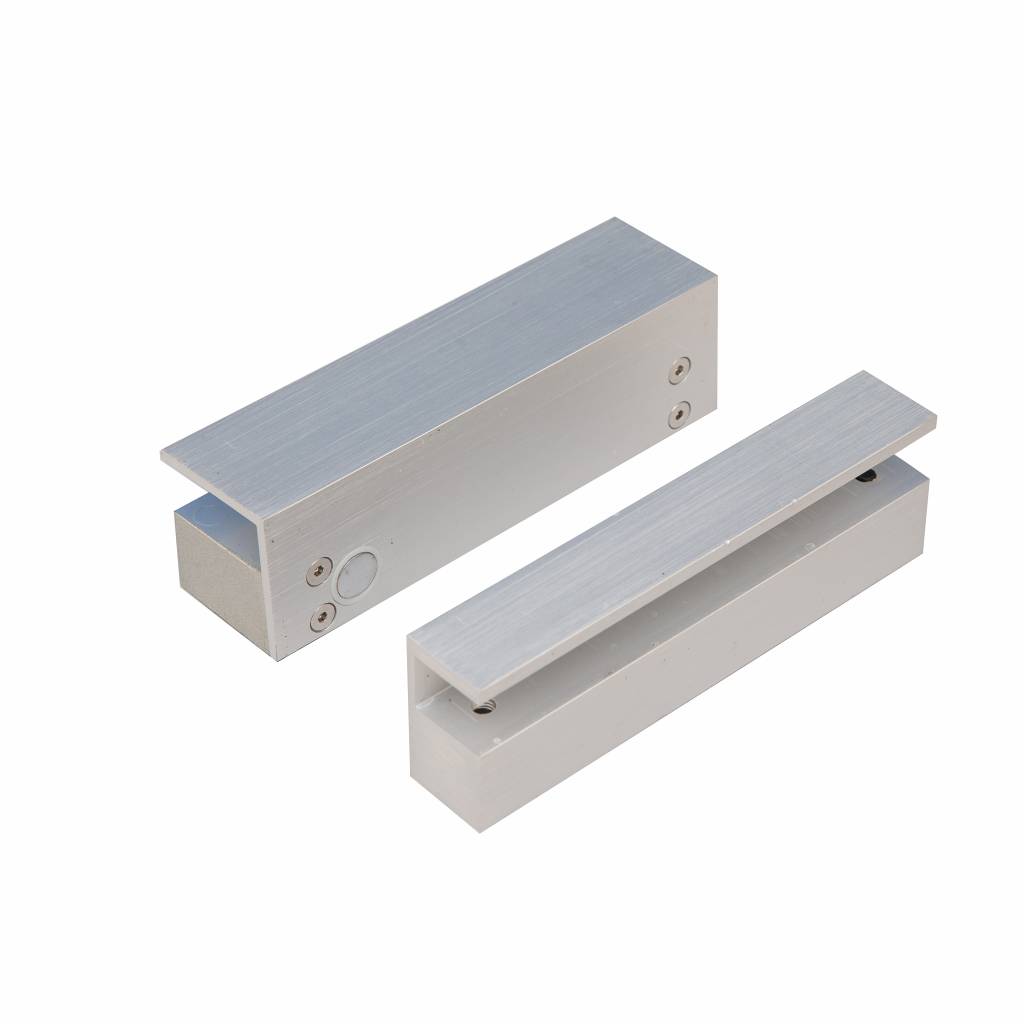

RGL Dbgls150 Glass Frame To Glass Door Solenoid Bolt
Robust Aluminium Fail Safe Operation Drop Bolt For Use On Doors Up To 15Mm
£64.95 exc VAT
- Glass frame to glass door drop bolt
- Fail-safe version
- Operating voltage - 12VDC
- Delay timer (0/3/6/9 seconds)
- For use on glass door and frames Holding force 1000kg
- For use on doors up to 15mm
- 148x42x38 (mm) (Bolt portion)
- 148x46x25 (mm) (Recess portion)
Features
- Robust aluminium
- Fail-safe operation
- Long life drop bolt
- Auto locking after 3, 6 or 9 seconds
- Greater than 500,000 operation
- Auto re-locking timer setting
- Operating voltage: 12VDC
- Standby current: 120mA
- Operating current: 900mA
- Suitable for double action swinging doors
- Holding force 1000kg
- For use on frameless glass doors up to 15mm thickness
Dimensions
Dropbolt: 148x42x39 (mm)
Strike Plate: 148x42x25 (mm)
Contents
2 Glass door units
Door shims
DATASHEET
Additional information
| Dimensions | 148 × 42 × 39 mm |
|---|
