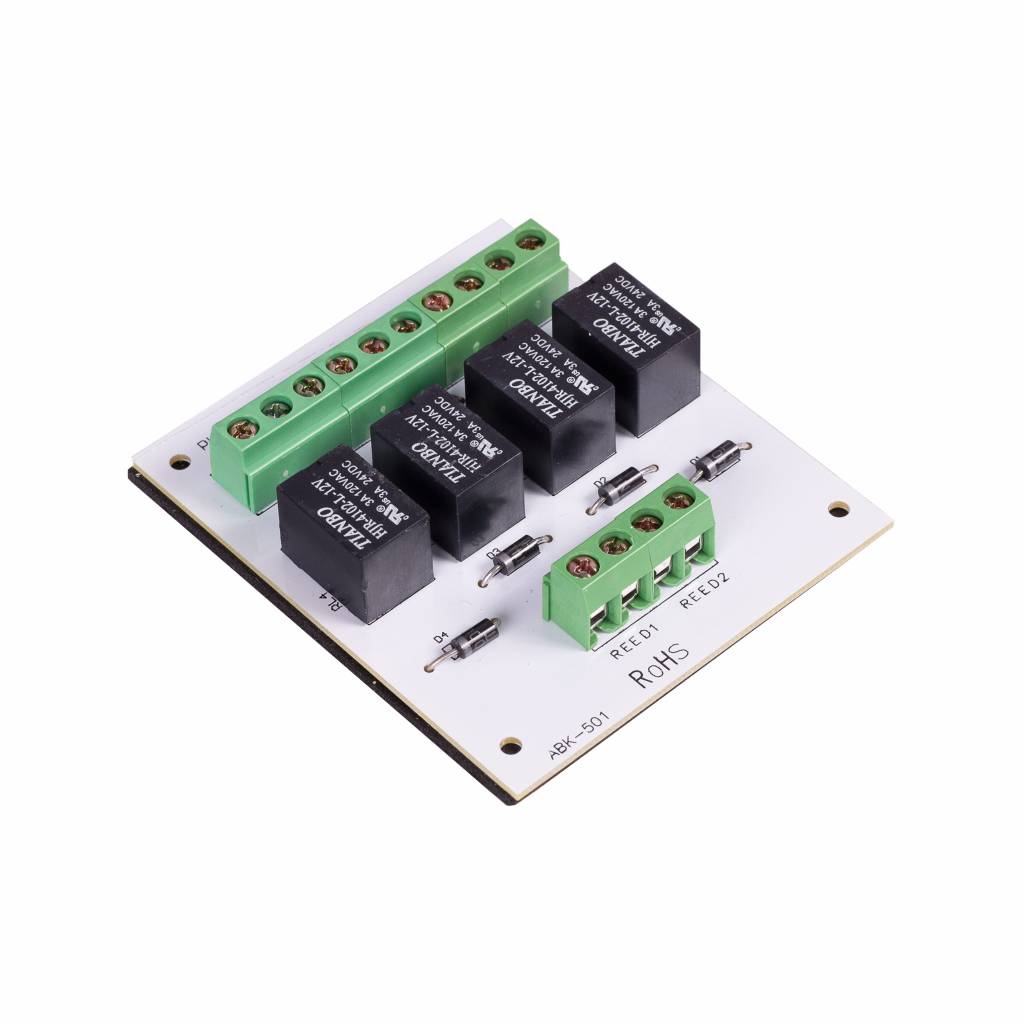

RGL Dlim Door Interlock Module
£12.65 exc VAT
- Two separate inputs/outputs
- Lock outputs are voltage free contacts 5@24V
- Requires 12V supply
- Relay contacts rated: 3A @ 125VAC or 12VDC
- Input voltage: 10-15VDC
- Operating temperature: -20° to +70°C
- Operating humidity: 0-85 / non-condensing
Features
- Separate outputs lock door 1 and 2
- Separate push to exit inputs door 1 and 2
- To control two doors for interlocking
- Requires 1 door to be closed in order for the
second door to open
Dimensions
70x60 (mm)
44g (Unboxed)
Contents
DLIM
DATASHEET
Additional information
| Dimensions | 70 × 60 mm |
|---|
