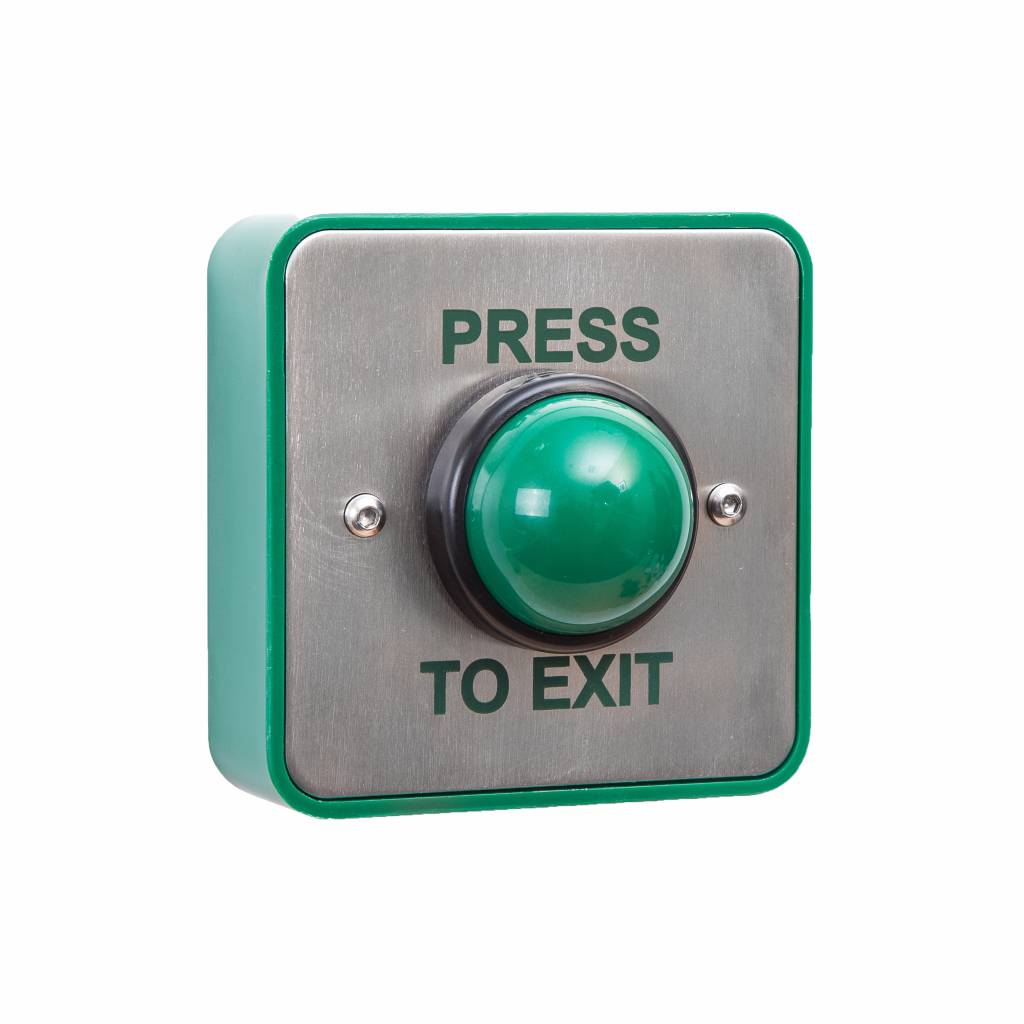

EBGBWC02/PTE Green Press To Exit Stainless Steel Switch With Green Dome Button (With Collar)
Green Double Pole Momentary Press To Exit Door Release Switch With Brushed Stainless Steel Faceplate And Green Dome Exit Button With Collar
£11.90 exc VAT
- Contacts: Double Pole N/O - N/C
- Output: 4Amp contact @ 30V AC/DC
- Wear resistant legend
- Security screws (allen key type)
- Internal or External use
- Button rated IP66 ingress protection
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
Features
- All plastic large green dome button
- Momentary operation / contact
- High impact plastic back box
- Can be surface or flush fitting
- Easy clean surface
- Ideal for general / sensitive areas
- Screw footprint for flush fitting onto standard back box
- Distance between fixing holes 60mm
- Anti rotational mounting
Contents
Green Dome Exit Button
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Surface Box
Datasheet
Additional information
| Dimensions | 85 × 85 × 32 mm |
|---|
