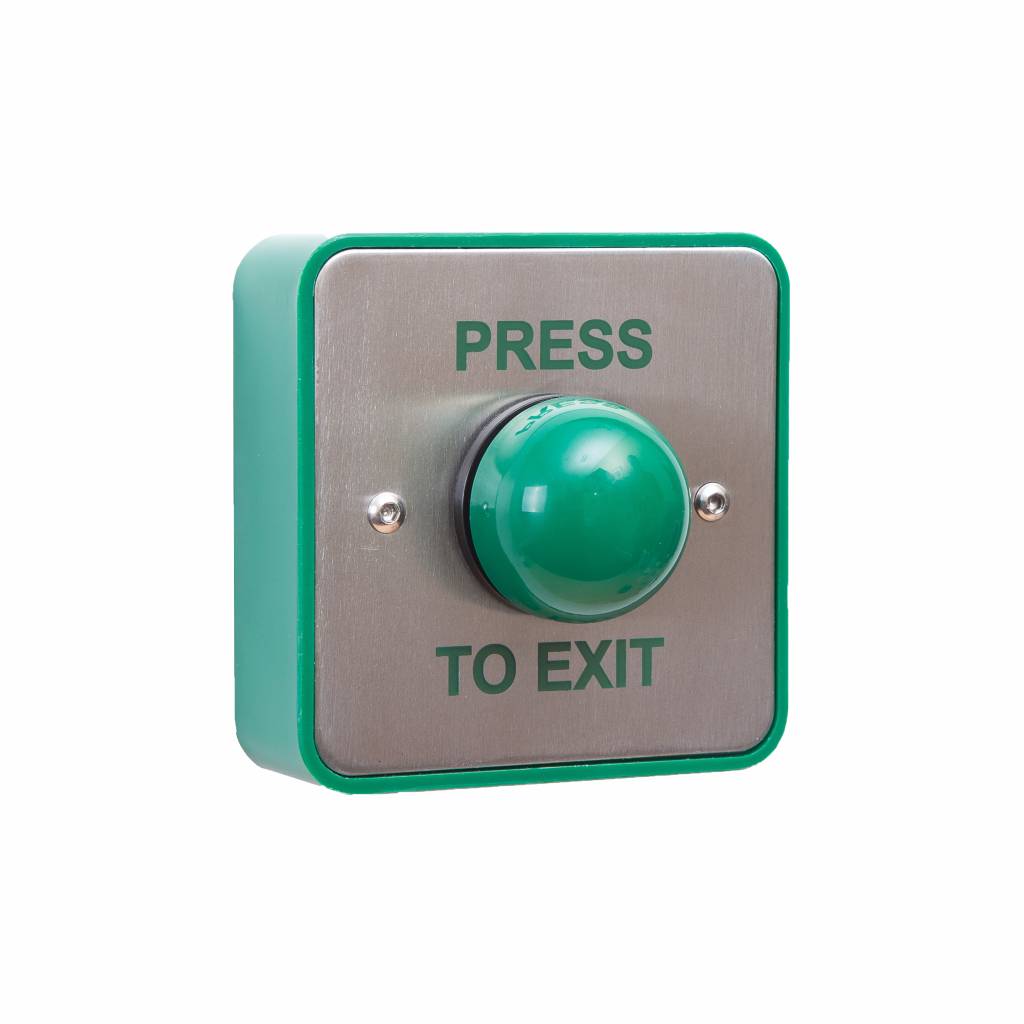

EBGBWOC02/PTE Green Press To Exit Stainless Steel Switch With Green Dome Button
Green Plastic Double Pole Momentary Exit Switch With Stainless Steel Faceplate And Green Dome Exit Button
£11.90 exc VAT
- Contacts: Double Pole N/O - N/C
- Output: 4Amp contact @ 30V AC/DC
- Wear resistant legend
- Security screws (allen key type)
- Internal or External use
- Button rated IP66 ingress protection
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
Features
- All plastic large green dome button
- Momentary operation / contact
- High impact plastic back box
- Can be surface or flush fitting
- Easy clean surface
- Ideal for general / sensitive areas
- Screw footprint for flush fitting onto standard back box
- Distance between fixing holes 60mm
- Anti rotational mounting
Dimensions
85H x 85W x 32D (mm)
248g Boxed
200g Unboxed
Contents
Green Dome Exit Button
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Surface Box
DATASHEET
Additional information
| Dimensions | 85 × 85 × 32 mm |
|---|
