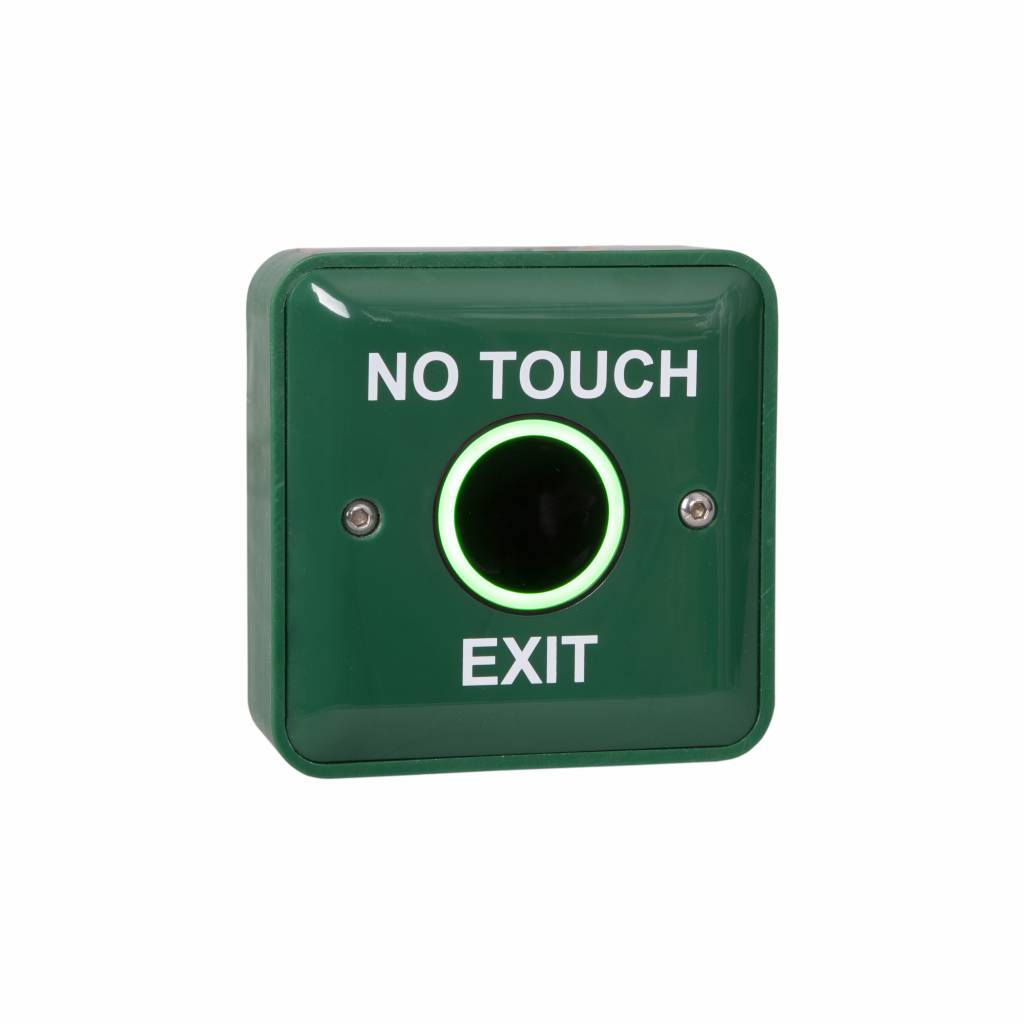

EBNT/TF-4 Touch Free Infra-Red Door Release With Illuminated Sensor

• Contacts: Double pole NONC contacts
• Contact Load: 0.5A @ AC 125V / 2A @ DC30V
• Voltage: 12 VDC @ 45mA operating
• +/- 10% voltage tolerance
• Legend: No Touch Exit
• Button rated IP65 ingress protection
• Relay timer: 5 seconds
• Operating distance: 0-150mm
• -30° to +80°c operating temperature
• Humidity: 20%-80%
• Designed to prevent interference with other
  infra red devices
• Requires a permanent power supply
• Volt free contacts

Features

• 35mm Touch free sensor button
• Illumination - Red for standby, Green for switch operated/door open
• Manufactured using anti bacterial materials
• High impact plastic back box
• Can be surface or flush fitting
• Easy clean surface
• Ideal for general / sensitive areas
• Screw footprint for flush fitting onto standard back box
• Distance between fixing holes 60mm
• Suitable Alternative Back Boxes:
  EXTR02 (Aluminium Extrusion 40mm)
  SSBB02 (Stainless Steel Back Box 42mm)
  PBB05 (Green or Black Back Box 40mm)

Dimensions

85x85x32 (mm)
140g (Boxed) 220g (Boxed)

Contents

Touch free button
Back box
Screw bag
Instructions

DATASHEET

EBNT_TF-4
