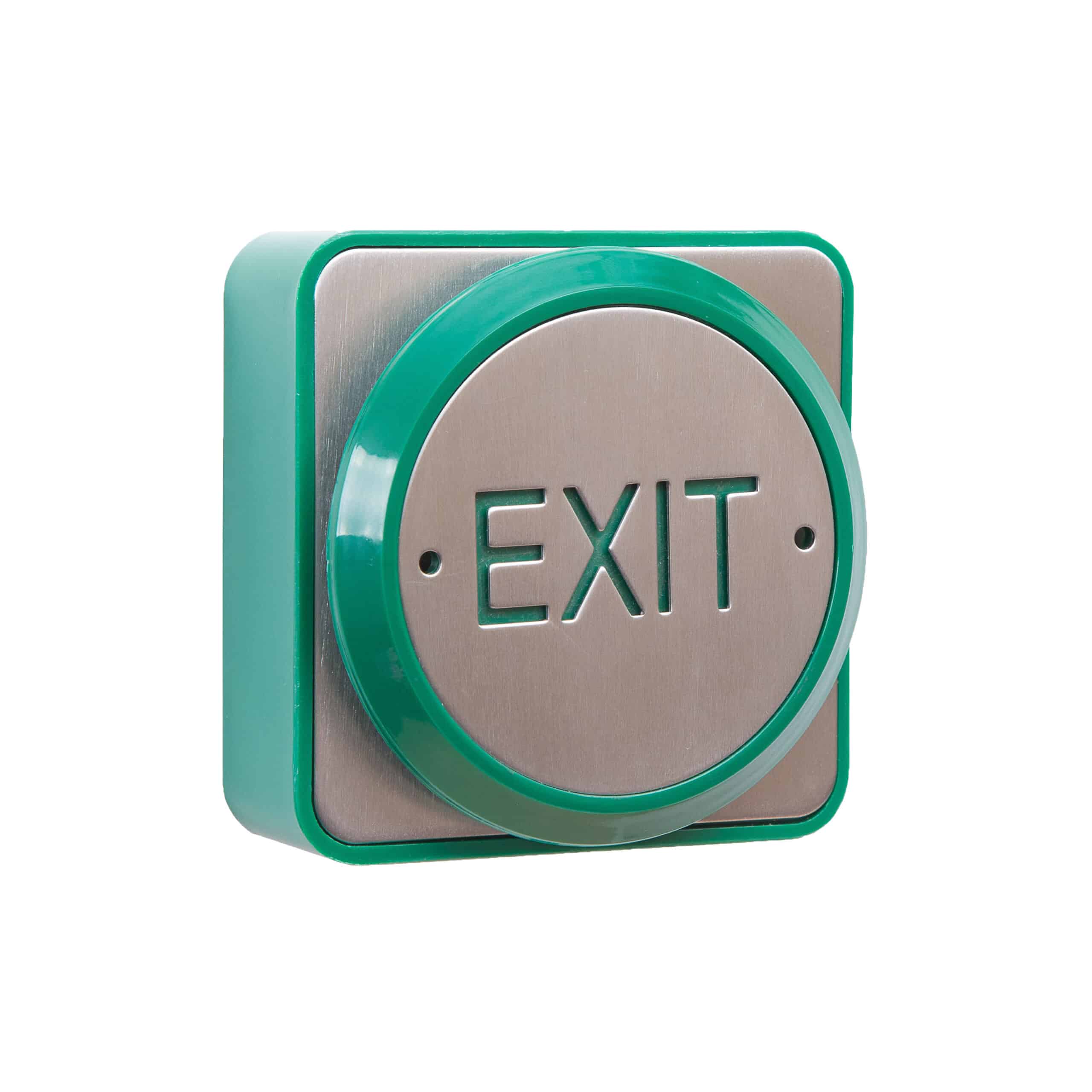

EBPP02 Green Press To Exit Switch With Stainless Steel 360° Push Pad
Surface Mounted Double Pole Exit Switch With Stainless Steel Face Plate And Large 360° Exit Push Pad
£15.05 exc VAT
- All active 360° push plate
- 4 AMP contact @ 30V AC/DC
- Surface or flush fitting
- Double pole NO/NC contact
- Internal or External use
- Button rated IP65 ingress protection
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
Features
- Ideal for general use
- Easy cable entry from sides or rear
- Screw footprint for flush fitting onto standard back box
- Can be surface or flush fitting
- Easy clean surface
- Distance between fixing holes 60mm
Dimensions
85x85x32 (mm)
282g (Boxed) 242g (Unboxed)
Contents
Exit Button
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Surface Box
DATASHEET
Additional information
| Dimensions | 85 × 85 × 32 mm |
|---|
