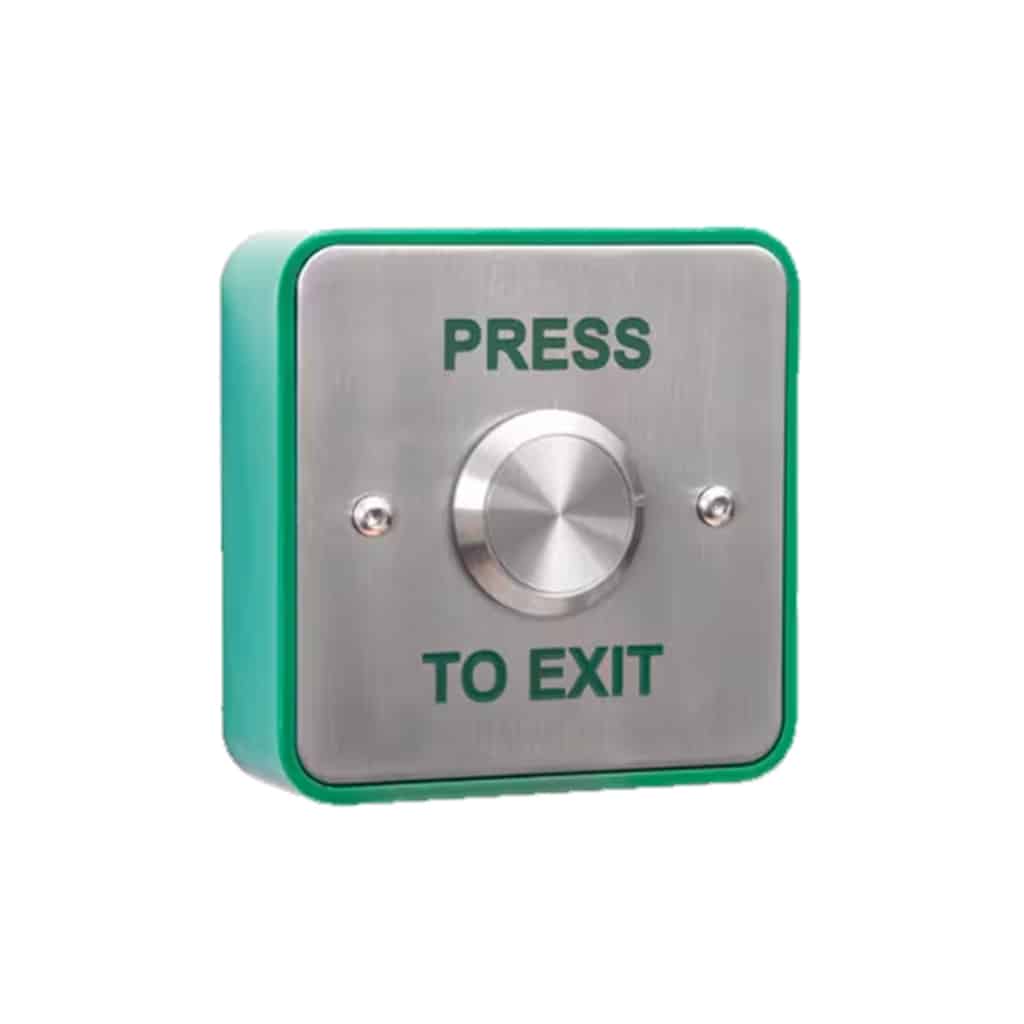

EBSS25/PTE Green Press To Exit Stainless Steel Switch With 25Mm Button
Green Double Pole Momentary Press To Exit Door Release Switch With Brushed Stainless Steel Faceplate And 25Mm Stainless Steel Exit Button
£13.05 exc VAT
- Contacts: Double pole N/O - N/C
- Output: 4 AMP contact @ 30V AC/DC
- Wear resistant legend
- Security screws (allen key type)
- Internal use
- Button rated IP54 ingress protection
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
FEATURES
- Stainless steel button
- Momentary operation / contact
- High impact plastic back box
- Can be surface or flush fitting
- Easy clean surface
- Ideal for general / sensitive areas
- Screw footprint for flush fitting onto standard back box
- Distance between fixing holes 60mm
85x85x28 (mm)
240g (Boxed)
198g (Unboxed)
CONTENTS
Stainless Steel Exit Button
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Surface Box
DATASHEET
Additional information
| Dimensions | 85 × 85 × 28 mm |
|---|
