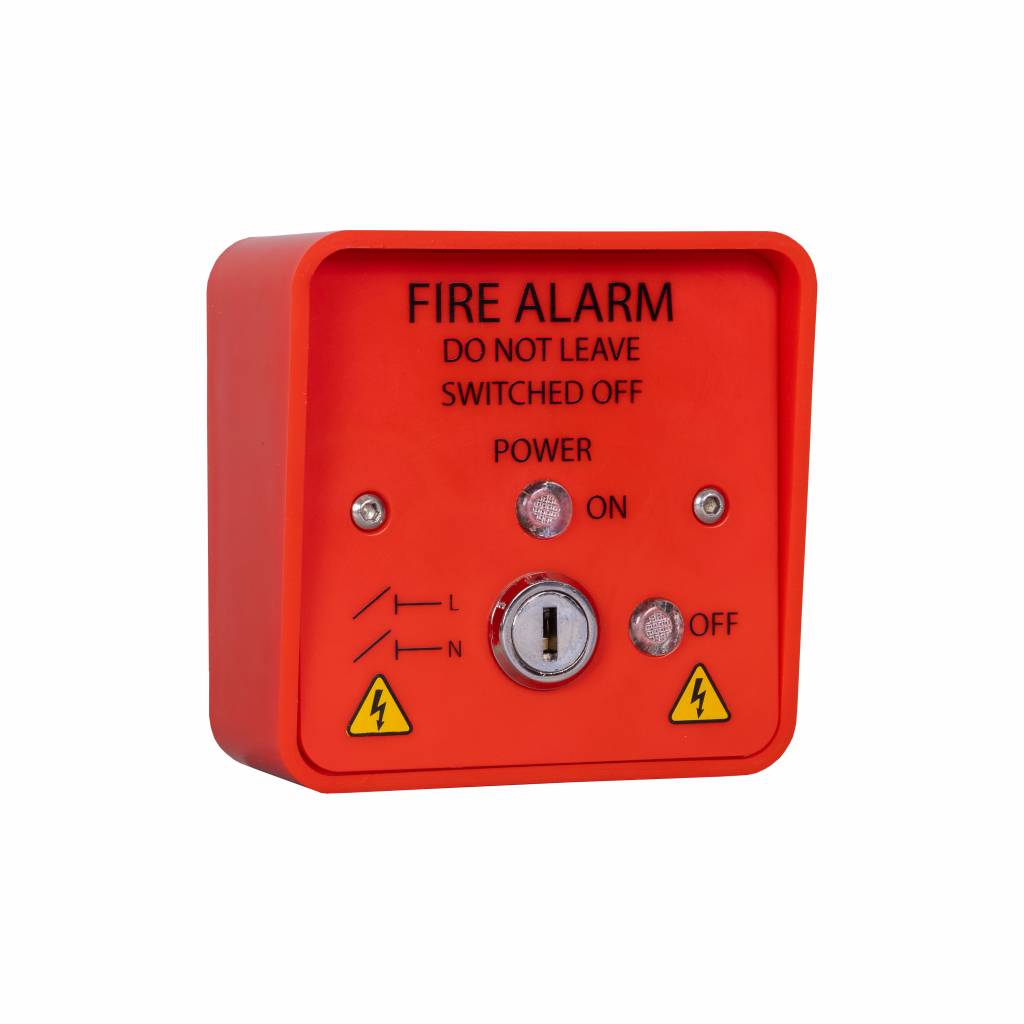

FIREIS01 Fire Panel / Mains Fused Isolation Switch
Mains Isolation Key Switch That Provides A Secure Method Of Safely Isolating The Mains Supply To A Fire Alarm System
£13.45 exc VAT
- MAINTAINED on/off operation
- Key removal in both positions
- Keyed alike
- Supplied with 2 x keys (KEY-FIS)
- Normal Voltage Rating: 230VAC 50Hz
- Contact Rating: Double Pole - 250VAC
- Fuse Rating: 4A Fast
- Legend (ON / OFF)
Features
- PROVIDES AN ADDITIONAL VISUAL INDICATION
TO SHOW THAT THE UNIT HAS BEEN TURNED
OFF AND THE FUSE IS DISCONNECTED FROM
THE SUPPLY - When in OFF position the Red LED pulses and
the internal fuse is disconnected from the supply - When in ON/POWER position the Green LED lights up
- Cable tie points for secure installations
- Can only be switched by an authorised person
- Made in accordance with BS5839 Pt1 2013
- Surface mounted as standard but can be flush
fitted using a 35mm kobo box
Dimensions
90x90x55/45 (mm) (HxWxD)
210g (Boxed)
164g (Unboxed)
Contents
Fire Isolation Switch
2 x Keys (KEY-FIS)
2 Screws
Shrouded Surface Box
DATASHEET
Additional information
| Dimensions | 90 × 90 × 55 mm |
|---|
