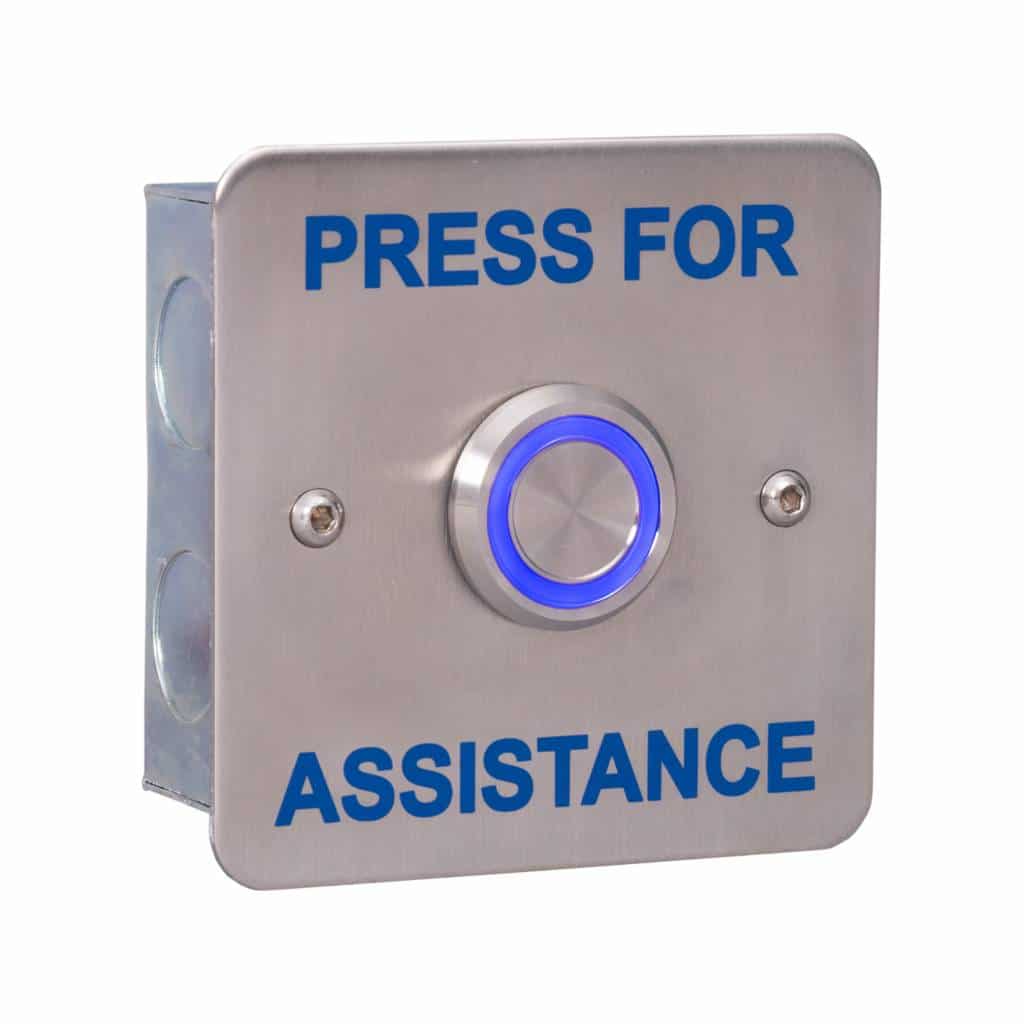

K-PIL-BS/PFA Press For Assistance Stainless Steel Switch With Illuminated Piezo Button
Flush Fitting Ip68 Rated Press For Assistance Momentary Switch With Stainless Steel Faceplate And Blue Illuminated Piezo Button
£18.45 exc VAT
- Contacts: NO/COM
- Input current: 500mA @24V AC/DC
- Contact resistance: <50m
- Voltage: 12-24VDC
- Wear resistant legend
- Security screws (allen key type)
- Internal or External use
- Button is rated at IP68
- Operating temperature: -40° to +70°c
Features
- Stainless Steel Piezo Button
- Momentary operation
- LED status: Red / Green / Blue or Yellow (Static)
- No moving parts
- Flush fitting as standard
- Fits on standard RGL Surface Boxes
- Ideal for general/sensitive areas
- Distance between fixing holes 60mm
- The product can be made up with various
different plates within the RGL range
Dimensions
85H x 85W x 28D (mm)
300g (Boxed)
260g (Unboxed)
Contents
Illuminated Piezo Switch
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Electrical Back Box
DATASHEET
Additional information
| Dimensions | 85 × 85 × 28 mm |
|---|
