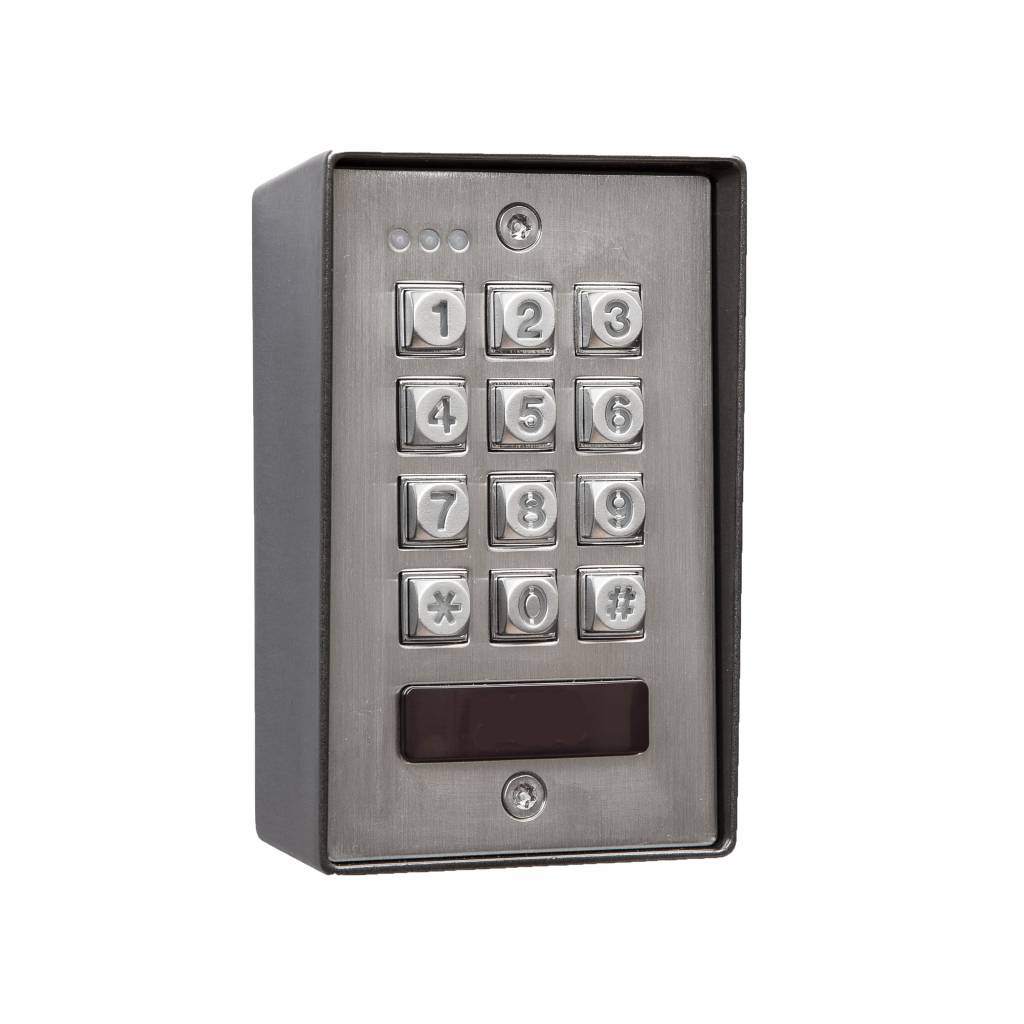

RGL Kpx50 Ip66 Vandal Resistant Keypad With Proximity (Wiegand)

• Heavy duty vandal resistant
• Stainless steel face plate and keys
• Ideal for gates and barriers
• Backlit keys
• Output 1: 100 users Output 2: 20 users
• 12V-24V AC/DC max 150mA
• Same basic specification as KP50
• Compatible with 125KHz EM cards & fobs
• Input for separate reader (wiegand)
• 3 levels of security for entry:
  - Card or code entry
  - Card and common user pin code
  - Card and individual user pin code

Features

• Visitor code programming
• Latch/toggle function
• Door inter-lock function
• Easy to wire and programme
• 4-8 digit codes
• Adjustable output timers
• Over 100 million pin combinations
• Vandal resistant
• IP66 rated

Dimensions

125x79x46/54 (mm) (HxWxD)
652g (Boxed)
518g (Unboxed)

Contents

KP50
Instructions
Screw Bag / Resistor
KPX50
Instructions
Screw Bag / Resistor
2 x KP-HD-CARD

DATASHEET

KPX50
