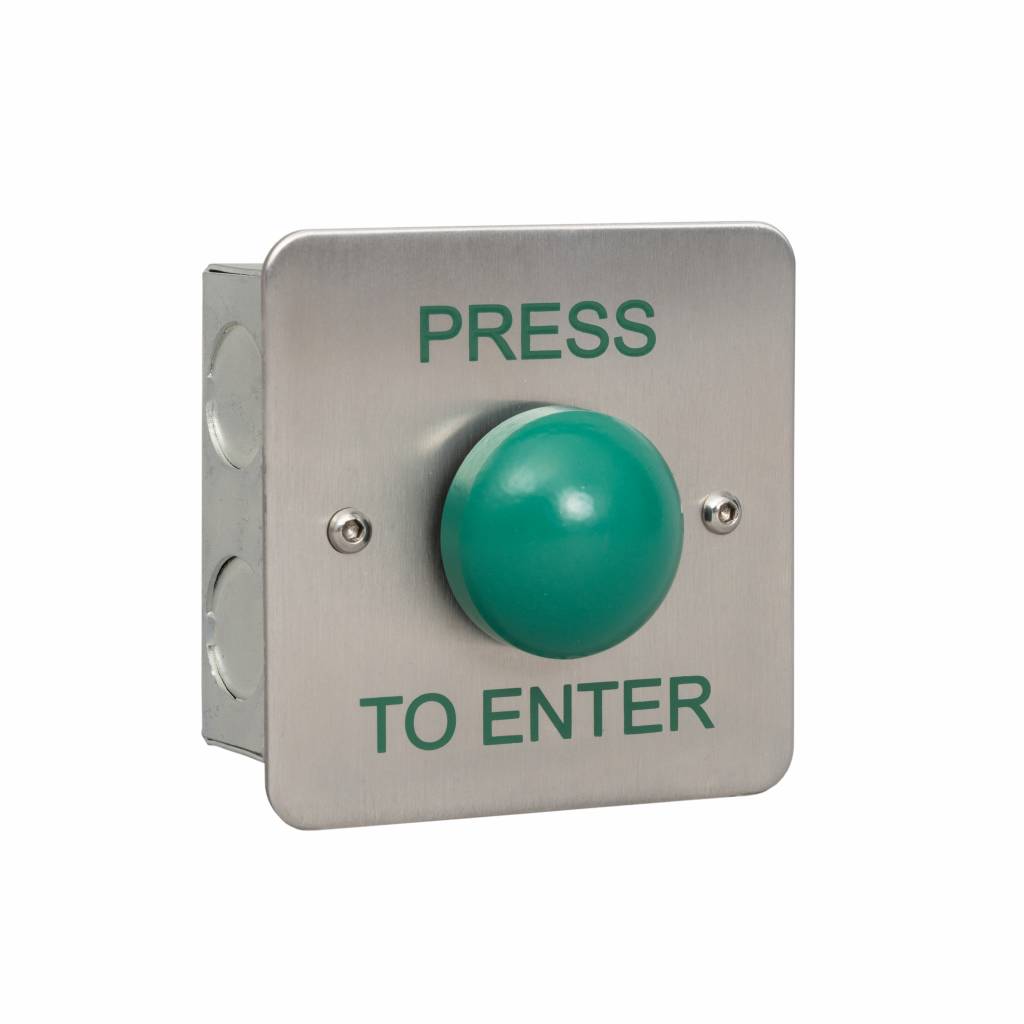

MKOBO-EBGB/PTENTER Metal Press To Enter With Green Metal Dome Button
Flush Fitting Double Pole Momentary Entry Switch With Green Metal Dome Exit Button
£15.95 exc VAT
- Contacts: Double pole NONC
- Output: 4 AMP contact @ 30V ACDC
- Wear resistant legend
- High impact aluminium extrusion
- Vandal resistant
- Internal or External use
- Button rated IP66 ingress protection
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
Features
- Large metal green button
- Momentary operation / contact
- Can be surface (MEXT) or flush fitting (MKOBO)
- Easy clean surface
- Ideal for general / sensitive areas
- Screw footprint for flush fitting onto standard back box
- Distance between fixing holes 60mm
- Anti rotational mounting
Dimensions
85H x 85W x 38D (mm)
360g (Boxed) 318g (Unboxed)
Contents
Green Dome Exit Button
Stainless Steel Plate (2mm)
2 Screws
Surface Aluminium Extrusion (MEXT)
DATASHEET
Additional information
| Dimensions | 85 × 85 × 38 mm |
|---|
