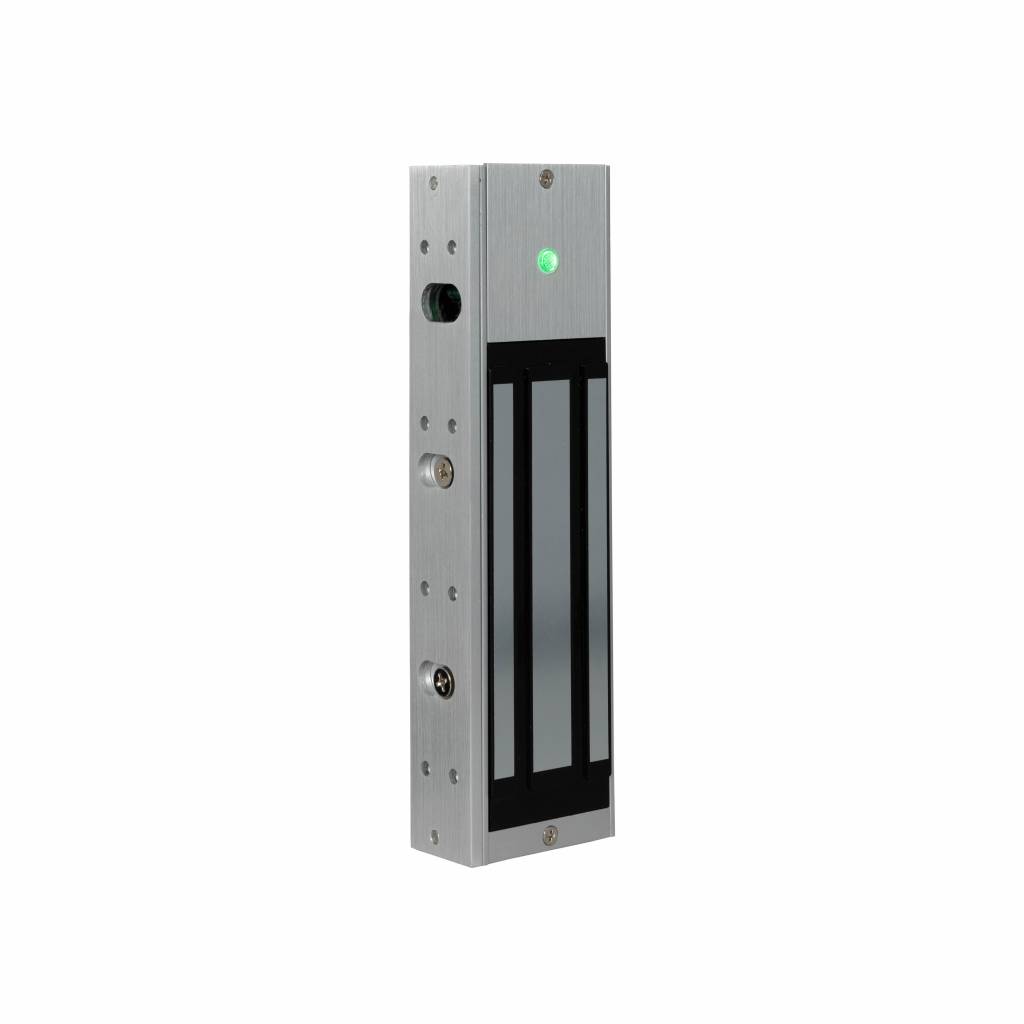

RGL Ml1200-M Fire-Rated Monitored Standard Maglock

• Aluminium housing
• 12/24 VDC @600/300mA
• 545kg (1200lb) holding force
• Built in surge protection
• Surface mount
• Fail safe operation (power to lock)
• +/- 15% voltage tolerance
• -10° to +50° operating temperature
• Push off release pin on armature
• Monitored
• Voltage free relay contacts

Features

• Fire rated (30, 60, 80 & 120 min timber door set)
• Standard magnet
• Clean and compact design
• No residual magnetism
• Power LED indication on ML1200 (Red LED only)
• Status LED indication on ML1200-M (Red to Green)
• Suitable Brackets/Housings: INWARD
  BK1200ZL (ZL bracket)
  BK1200-F-L/AB (Architectural F/ZL) OUTWARD
  BK1200L (L Bracket)
  ADJ1200-L (Highly adjustable L)
  AH1200 (Required for Fire Doors)

Contents

Standard magnet (1200lb)
Armature plate
1200GB fixing kit
Instructions
Armature fixing template

DATASHEET

ML1200-M
