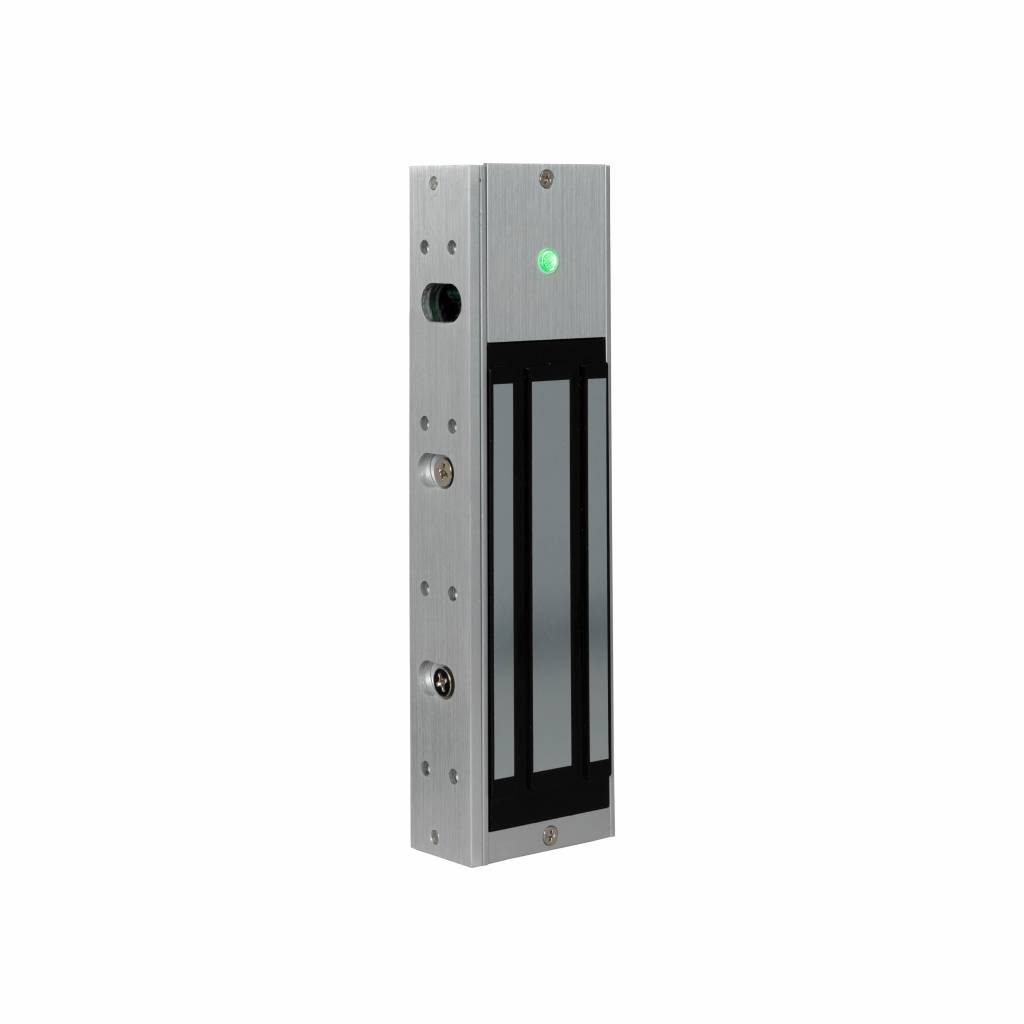

RGL Ml1200-Mds Fire-Rated Monitored Standard Maglock With Door Status

• Aluminium housing
• 12/24 VDC @600/300mA
• 545kg (1200lb) holding force
• Built in surge protection
• Surface mount
• Fail safe operation (power to lock)
• +/- 15% voltage tolerance
• -10° to +50° operating temperature
• Push off release pin on armature
• Monitored (Lock Monitoring)
• Voltage free relay contacts
• Door Status Monitoring
  (Lock monitoring checks maglock is reporting itself as locked
  and has a contact that works independently
  from the maglock and shows if the door is open or closed

Features

• FIRE-RATED (30, 60, 80 & 120 min timber door set)
• Standard magnet
• Clean and compact design
• No residual magnetism
• Power LED indication on ML1200 (Red LED only)
• Status LED indication on ML1200-M (Red to Green)
• Suitable Brackets/Housings:
  BK1200ZL (ZL bracket)
  BK1200-F-L/AB (Architectural F/ZL)
  BK1200L (L Bracket)
  ADJ1200-L (Highly adjustable L)
  AH1200 (Required for Fire Doors)

Dimensions

266x72x40 (mm) Maglock (LxWxD)
185x60x15 (mm) Armature (LxWxD)
4.27kg Boxed
2.79kg Unboxed

Contents

Standard magnet
Armature plate
1200GB fixing kit
Instructions
Armature fixing template

DATASHEET

ML1200-MDS
