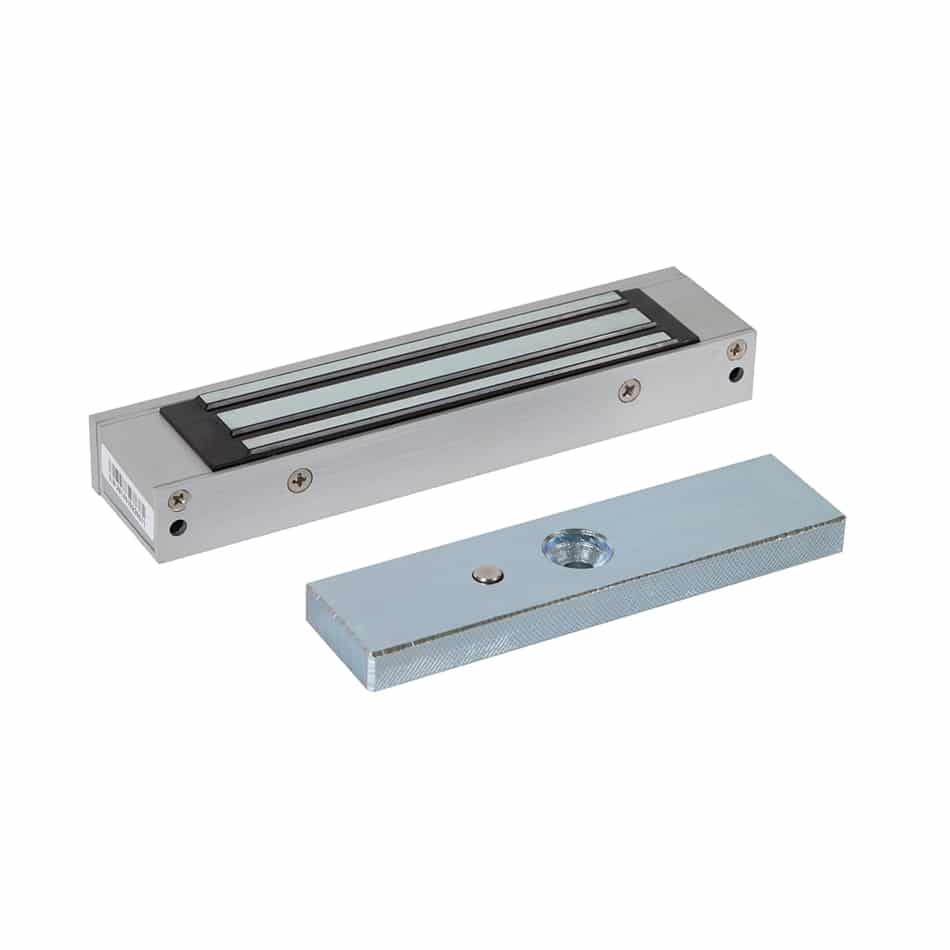

RGL ML300 Fire-Rated Micro Maglock
Fire-Rated Micro Magnetic Lock 300Lb/136Kg Holding Force
£21.40 exc VAT
- Aluminium housing
- 12 VDC @ 300mA
- 136kgs (300lb) holding force
- Built in surge protection
- Surface mount
- Fail safe operation (power to lock)
- +/- 15% voltage tolerance
- -10° to +50° operating temperature
- Push off release pin on armature
Features
- Fire rated (30, 60, 90 & 120 min timber door set)
- Slimline micro magnet
- Clean and compact design
- No residual magnetism
- Suitable Brackets/Housings:
BK300ZL
AH300
Contents
Slimline mini magnet (300lb)
Armature plate
300GB fixing kit
Instructions
Armature fixing template
DATASHEET
Additional information
| Dimensions | 39 × 170 × 21 mm |
|---|
