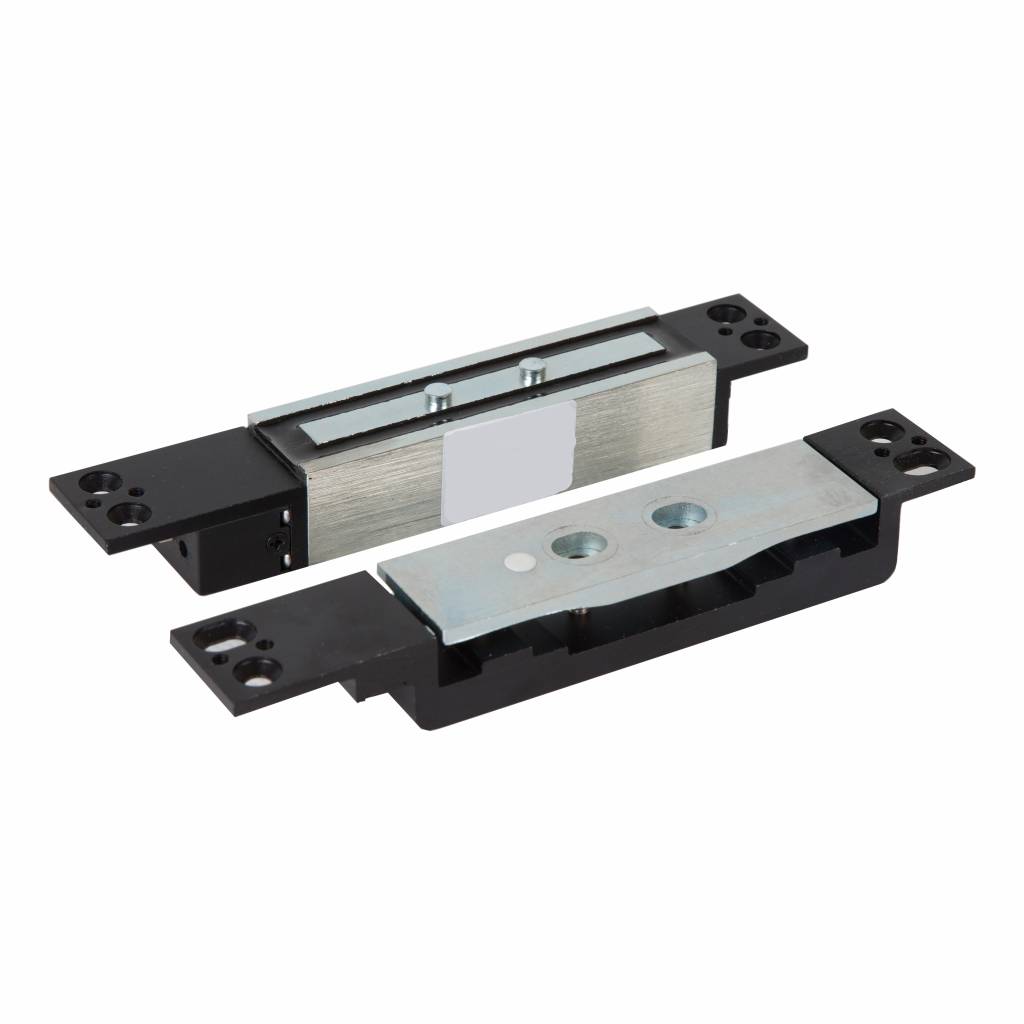

RGL Msl-2600 Monitored Shearlock

• Shearlock
• Door open delay timer
• Door position outputs
• Monitored 12V or 24V DC (auto adjusting)
• 220mA @ 12VDC/190mA @ 24VDC
• Maximum holding force of 1200kg or 2600LB
• 180x25x30(mm) Magnet
• 181x24x30(mm) Armature

Features

• Automatic repeated locking (maximum 60 times)
• Suitable for wooden and aluminium door types
• Made from fireproof materials
• Magnetic distance (max) - 3mm @ 12VDC - 5mm @ 24VDC
• For horizontal mounting only
• Suitable Brackets
  SH2600 (Surface Housing)
  GD2600 (Glass Door Bracket)

Dimensions

182x25x30 (mm)
1.2kg (Boxed)
582g (Unboxed)

Contents

MAGLOCK Body
Armature
Shims
Screw Pack

DATASHEET

MSL-2600
