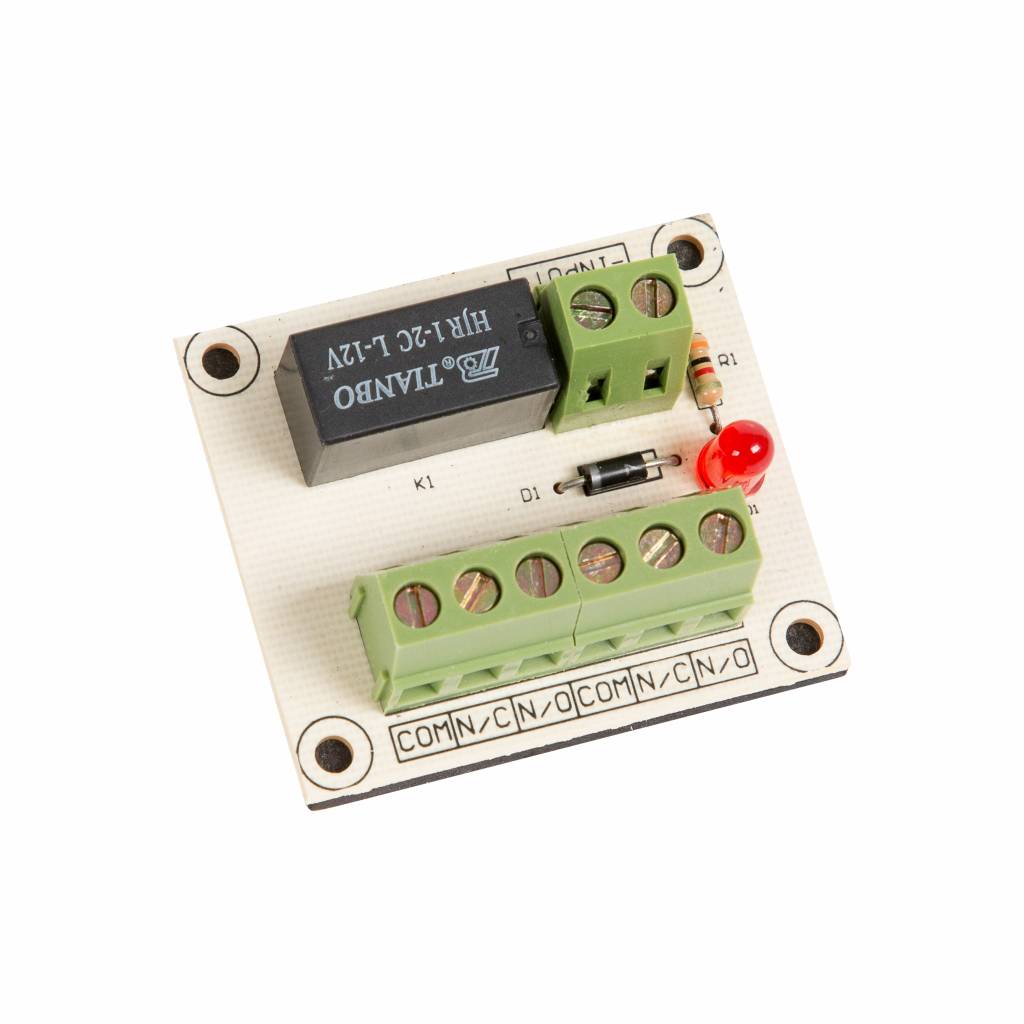

RGL Rl01 Mini Switching Relay
£6.45 exc VAT
- Mini switching relay
- Low current input @ 12VDC
- 9-20VDC
- Current 44mA
- Contact rating 5A @ 250VAC or 30VDC
- 2 x COM - NO-NC
Features
- LED indication
- Outputs linked via the common connection
Dimensions
46x40 (mm) - 26g (Unboxed)
Contents
RL01
3mm sticky pad
DATASHEET
Additional information
| Dimensions | 40 × 46 mm |
|---|
