RGL SMART G3 LCD ENERFLEX 12V 3AMP POWER SUPPLY

Technical specifications:

• Enerflex 13.8v 3amp PSU
  • Max 1.5A output to comply with EN50131-6
• Compliant to EN50131-6
• Security front tamper (grade 2) or front and rear tamper (grade 3)
• Fault outputs:
  • EPS fault (mains fail)
  • APS fault (battery fail)
  • PO fault (output fail)
• Full current to load
• Can recharge an 18aH battery (min 10v) from flat to 80% in 24 hours
• 12VDC output
• Additional battery charging
• Deep discharge protection
• Current limiting
• Short circuit protection
• 230V fused input
• Mains transient protection
• Compliant to EMC EN61000-6-1 & 3
• Up to 92% energy efficiency (reduced running costs and lower power usage)

Features:

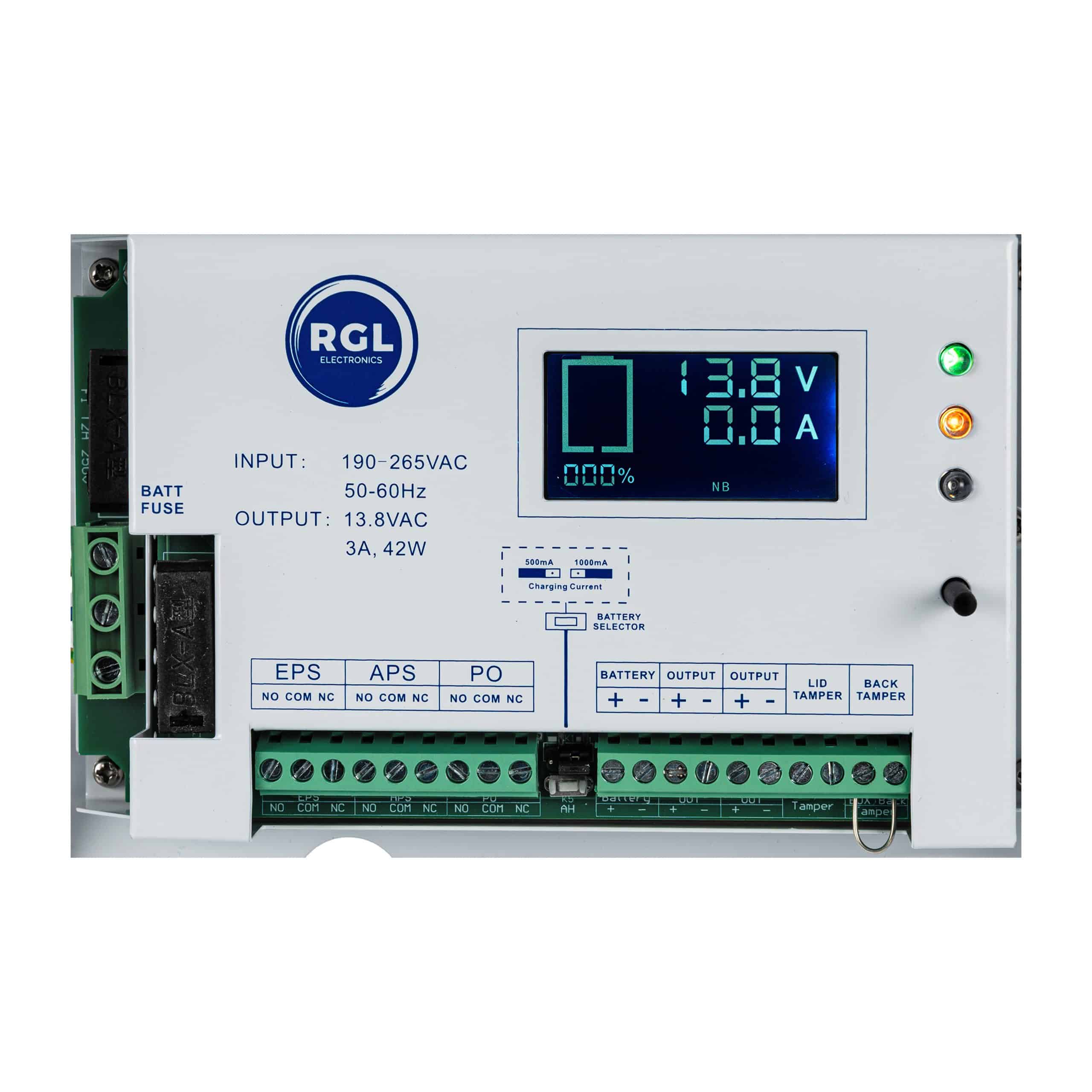

• Full LCD display
  • Monitors battery health
• Switchmode technology

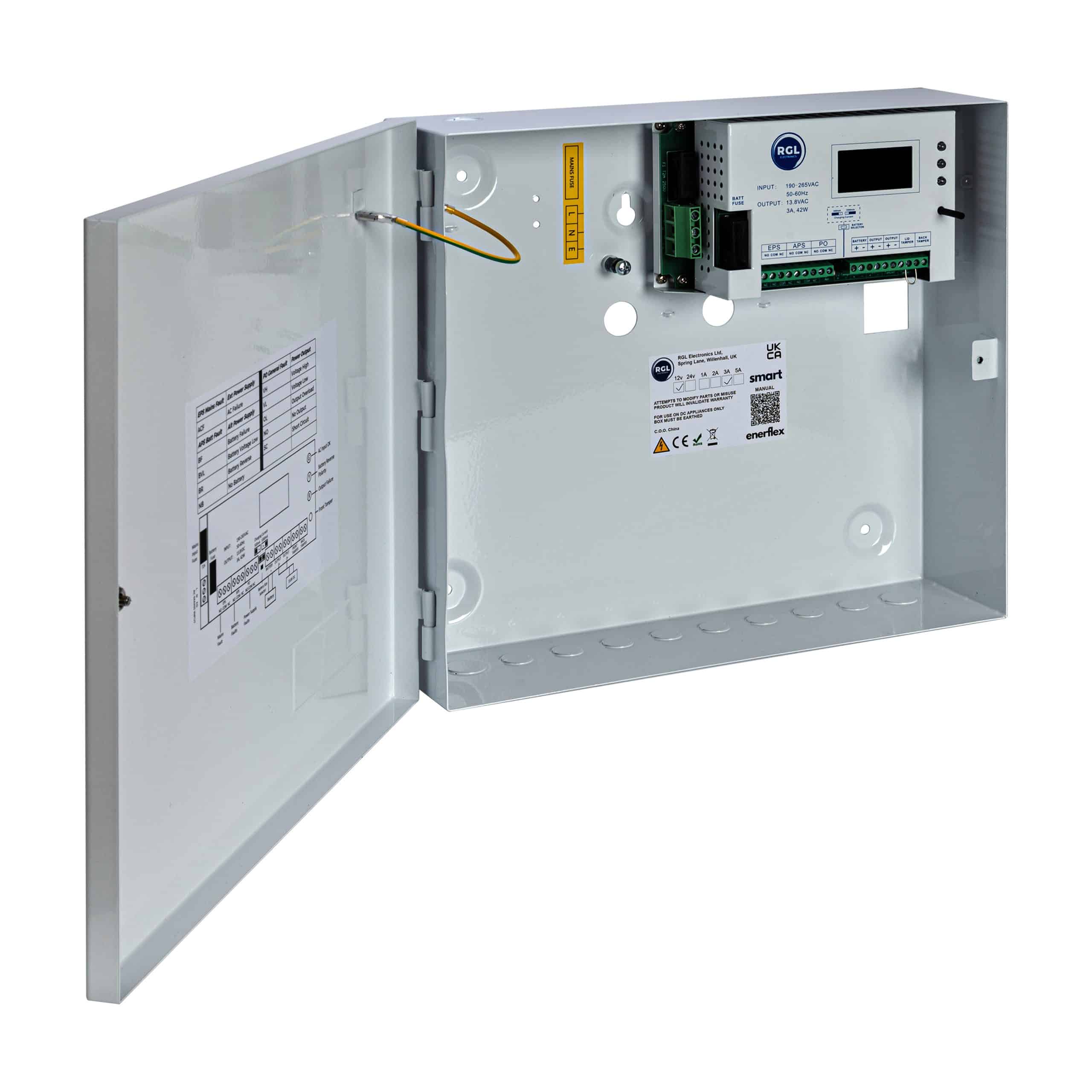

• Mild steel construction (White powder coated)
• Removable lid for easier installs
• LED Indicators (mains, batt, output)
• Separate fused main connectors
• Full electronic protection
• Onboard tamper protection
• Converts power more efficiently
• Multiple cable entry
• Allows for up to 1 x 17/18Ah battery

380H x 330W x 80D (mm)

DATASHEET

SMART LCD
