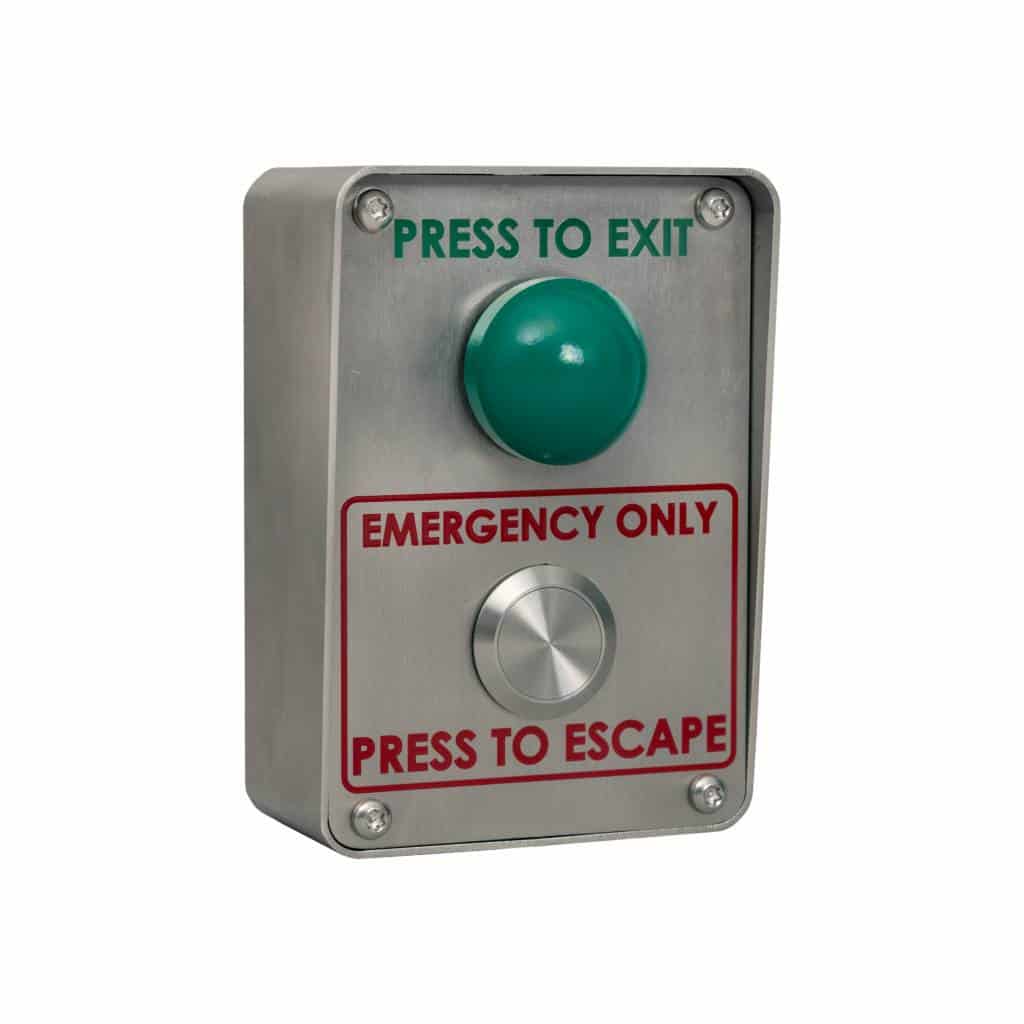

VP-EEB Self Resetting Emergency Press To Exit Green Dome And Emergency Button
Vandal Proof Double Pole Self Resetting Emergency Exit Switch Made In Brushed Stainless Steel With Green Dome Press To Exit Button And Emergency Only Press To Excape Stainless Steel Button
£90.60 exc VAT
- Contacts: Double pole NONC
- Output: 4 AMP contact @ 30V ACDC
- Wear resistant legend
- Vandal resistant
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
- The communal/public doors must be in full
compliance with building regulations and final sign off
Features
- Green dome button
- Designed for normal operation either momentary or using a standard time delay through your control unit
- Stainless steel button
- The emergency exit button will open the door
for a minimum of 3 minutes or more if required (when pressed) - RL03 timer module
- 12V & 24V DC
- Contact rating 10A @ 125VAC or 10A @ 30VDC
- NC/COM/NO
- Positive or negative trigger
- 1 to 999 minutes
Dimensions
130x90x45/55 (mm)
750g (Boxed)
680g (Un boxed)
Contents
Vandal proof exit device
Timer relay
Instructions
DATASHEET
Additional information
| Dimensions | 130 × 90 × 45 mm |
|---|
