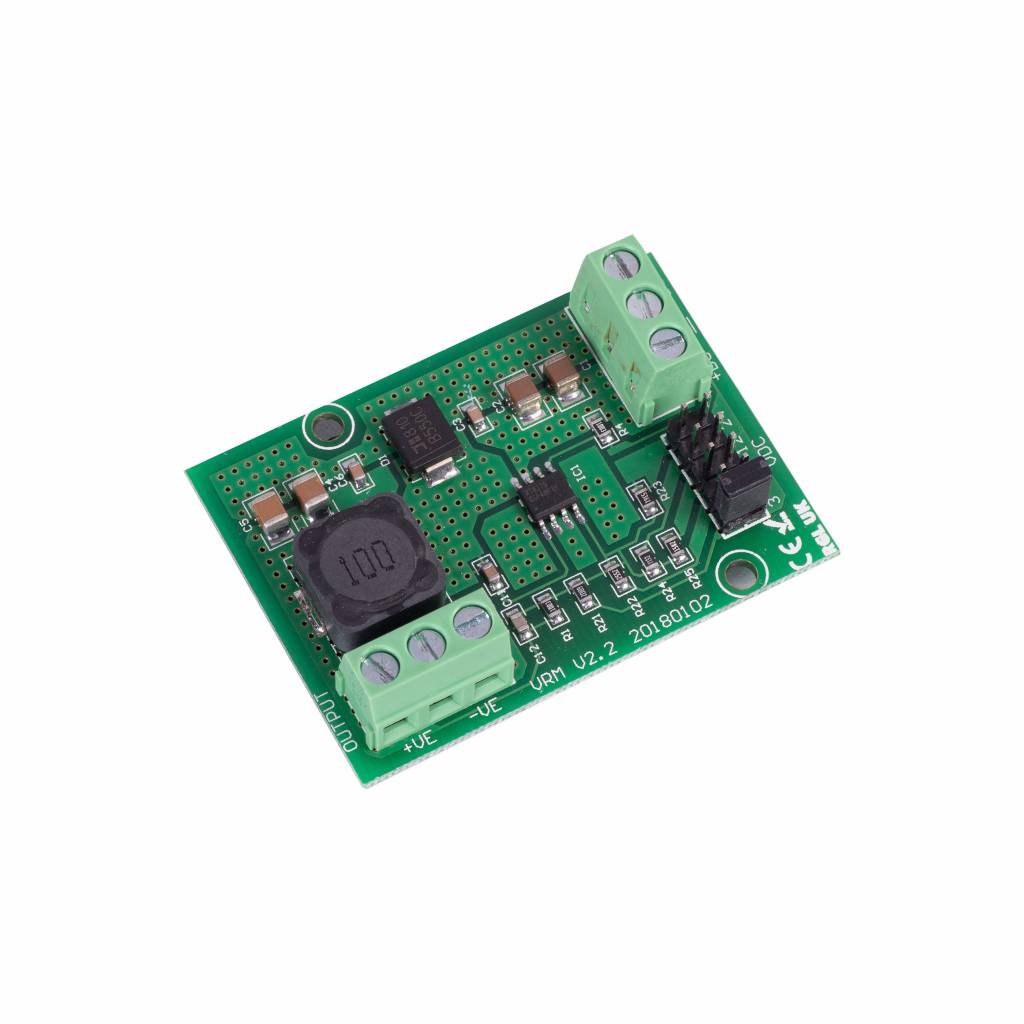

RGL Vrm2 Voltage Reduction Module
Perfect For Jobs Where Equipment Has Different Power Requirements
£14.05 exc VAT
- Input 6-32VDC
- Output current: 1.5A maximum (1A continuous)
- Output voltage: 3, 6, 9, 12, 24 VDC
- A step down DC-DC convertor that takes an input
at a higher voltage and converts it into a lower
voltage. The input voltage is selected by moving
the included jumper to the required voltage
Features
- Perfect for jobs where your equipment has
different power requirements - Can take any input from 6 to 32V and reduce it
to 3, 6, 9, 12 or 24 (as long as the output is a step
down from the input)
Dimensions
53.5x38.6x12.2 (mm) - 25g (Unboxed)
Contents
VRM2
DATASHEET
Additional information
| Dimensions | 38.6 × 53.5 × 12.2 mm |
|---|
