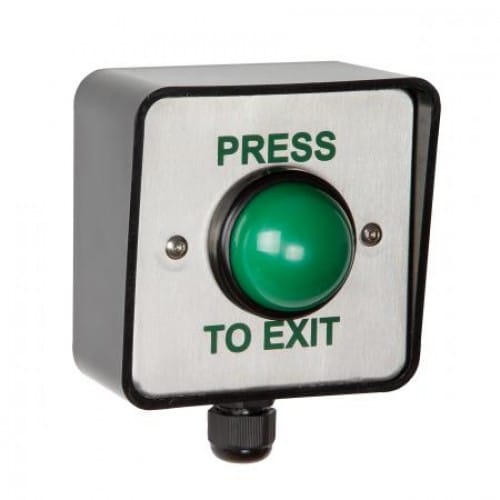

WP-EBGBWC02/PTE Weatherproof Shrouded Press To Exit Stainless Steel Switch With Green Dome Button
Ip66 Rated Weatherproof Double Pole Momentary Press To Exit Door Release Switch With Brushed Stainless Steel Faceplate And Green Dome Exit Button
£23.95 exc VAT
- Contacts: Double pole N/O - N/C
- Output: 4 AMP contact @ 30V AC/DC
- Wear resistant legend
- External use
- Rated IP66 ingress protection
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000(mm)
Features
- Green dome button
- Momentary operation / contact
- High impact plastic back box
- Surface fitting
- Easy clean surface
- Ideal for general / sensitive areas
- Gasket and gland included
- Screw footprint for flush fitting onto standard back box
- Distance between fixing holes 60mm
- Anti rotational mounting
Contents
Green Dome Exit Button
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Surface Box
Gland
Gasket
Datasheet
Additional information
| Dimensions | 85 × 85 × 40 mm |
|---|
