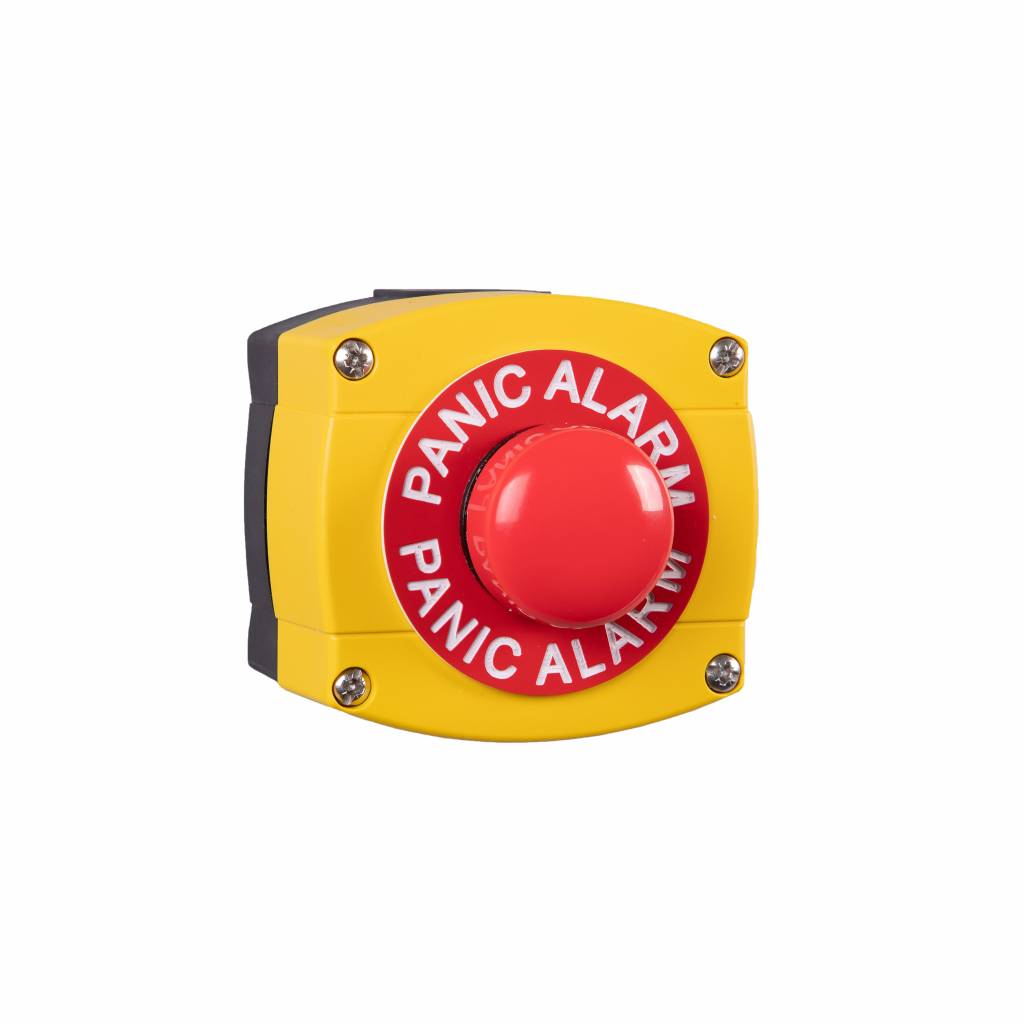

WP66-Y-RB/PA Weatherproof Yellow Panic Alarm Red Dome Button
Weatherproof Ip66 Rated Double Pole Momentary Yellow Panic Alarm Switch With Red Dome Button
£30.25 exc VAT
- Contacts: Double pole N/O - N/C
- Output: 4 AMP contact @ 30V AC/DC
- Wear resistant legend (others available on request)
- External use
- IP66 ingress protection (button & enclosure)
- Robust two part cross polymer housing
- M16/20 pre moulded conduit knockouts
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
Features
- Large plastic red button
- Momentary operation / contact
- High impact plastic back box
- Surface fitting
- Easy clean surface
- Ideal for general/sensitive areas
Dimensions
85H x 90W x 60/80D (mm)
248g (Boxed)
200g (Unboxed)
Contents
Red Dome Exit Button
4 Screws
Surface Enclosure
DATASHEET
Additional information
| Dimensions | 85 × 86 × 60 mm |
|---|
