TOILET Proximity Fob Locking System

• TLS Secure access control system (locking and engaging) toilet area(s)
• The Toilet door is always locked to prevent entry, a valid card or fob will allow access

How it works:

• Entry - Access can be gained into the toilet by presenting a Proximity Fob to the Proximity Reader / Indicator
• The door now needs to be in a closed position before progressing to the next stage
• Locking  - Use internal RED Touch Sensor which will activate the door lock(s).  The internal Touch Sensor and external Proximity Reader / Indicator will flash, showing the user that the door is locked and to people outside, that the toilet is engaged
• Unlocking - Use the internal GREEN Touch Sensor again and the lock(s) is released, allowing the door to be opened manually.

Dimensions

Square: 145(h) x 85(w) x 34(d)

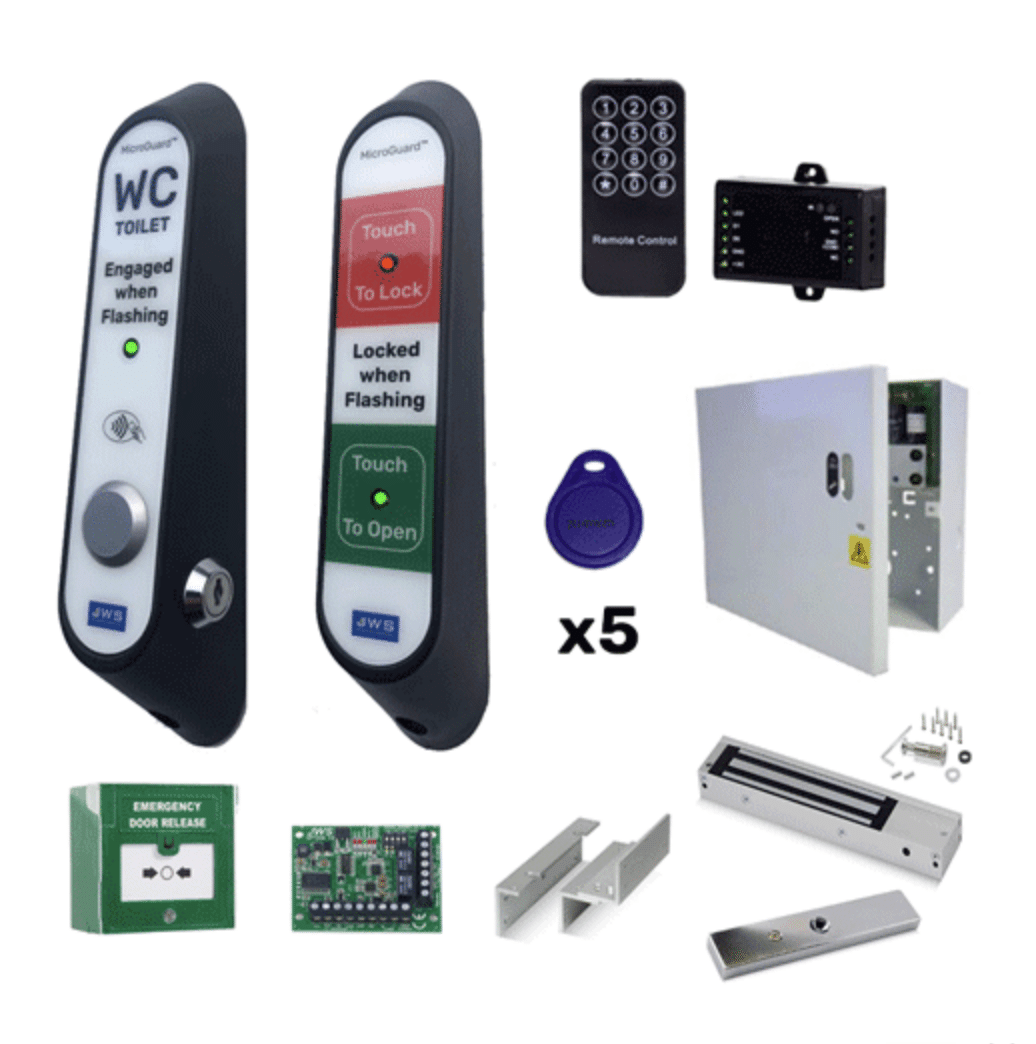

Contents

• TLS Secure PCB
• Separate Proximity Control Unit and Handheld Remote
• 12v 1A PSU (powers TLS and lock, houses both above items)
• 5 x User  Proximity Fobs
• Open (External) Proximity Reader / Indicator with Integral Keyswitch for emergency override
• Lock (Internal) Touch Sensor ( which locks and unlocks the door)
• Resettable Breakglass with Cover & 2 reset keys
• Slimline Door Status Maglock
• Z and L Bracket Kit
• User labels

The Proximity Reader / Indicator and Touch Sensor  is coated with MicroGuard™ Anti-Microbial Coating.
