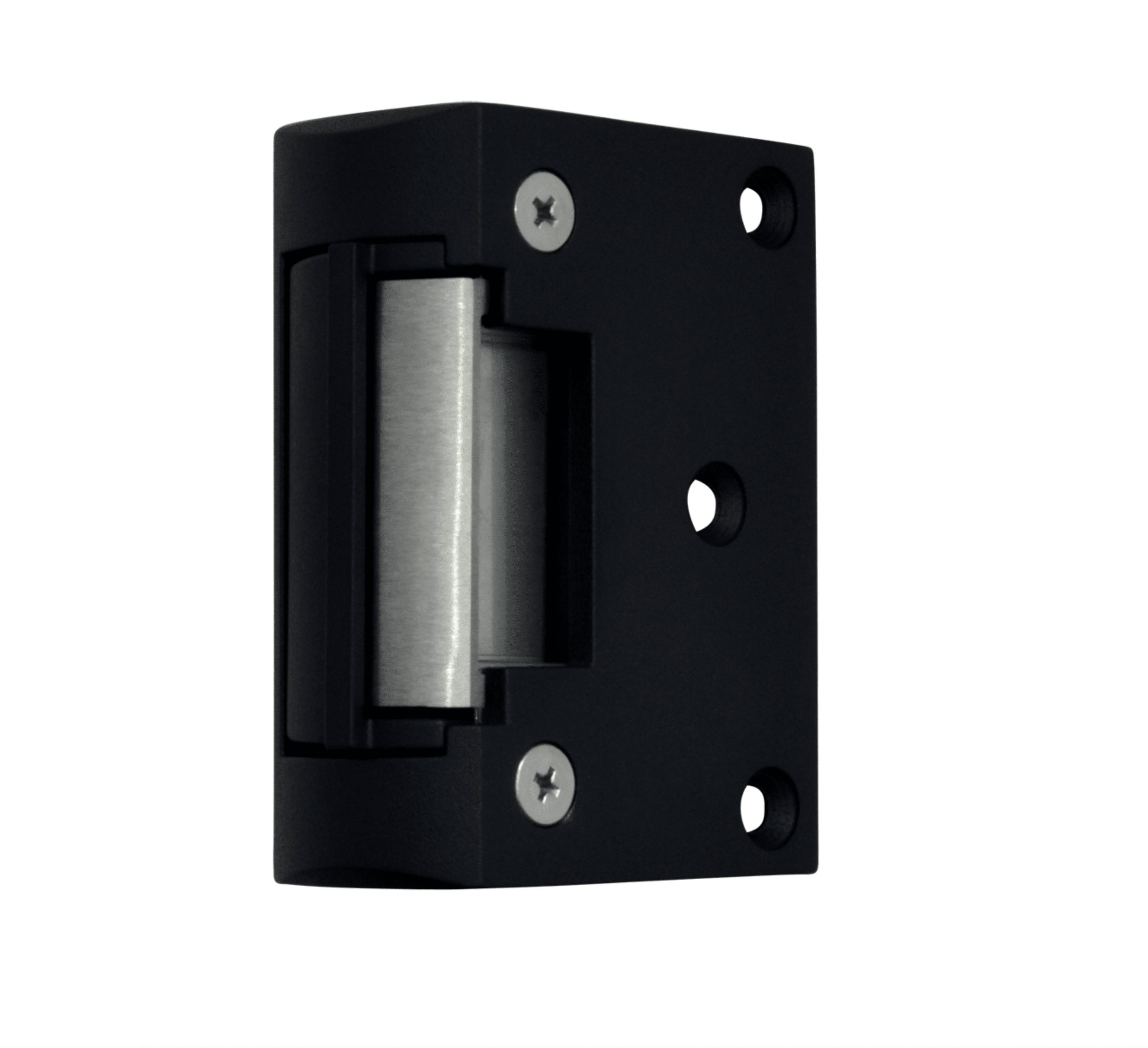

TRIMEC ES150 12/24V DC F/L Rim Release
£217.50 exc VAT
The Trimec ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike can be fitted to steel or wooden door frames and is easy to install. It can be controlled by a keypad, key switch or integrated into any access control system.
- Medium duty
- Inward opening only
- DC release are reversible fail locked or fail unlocked
- Continuously rated
| Adjustable Jaw | No |
| Barcode | 5055120624884 |
| Body Depth | 30mm |
| Body Height | 88mm |
| Brand | Trimec |
| Current Consumption | 0.25A @ 12V DC / 0.187A @ 24V DC |
| Faceplate Height | 88mm |
| Faceplate Width | 62mm |
| Finish | Grey |
| Fitting | Rim |
| Guarantee | Tricare 5 Year Warranty |
| Handed | Inward Opening |
| Holding Force | 680Kg / 1500Lbs |
| IP Rating | IP56 |
| Input Voltage | 12/24V DC |
| Jaw Depth | 12mm |
| Jaw Height | 38mm |
| Jaw Width | 16mm |
| Manufacturer Reference | 110152-010M |
| Monitored | No |
| Operation | Fail Locked / Fail Unlocked - Site Reversible |
| Pack Quantity | 1 |
| Packaging | Boxed |
| Weather Resistant | Yes |
| Weight | 240g |
DATASHEET
