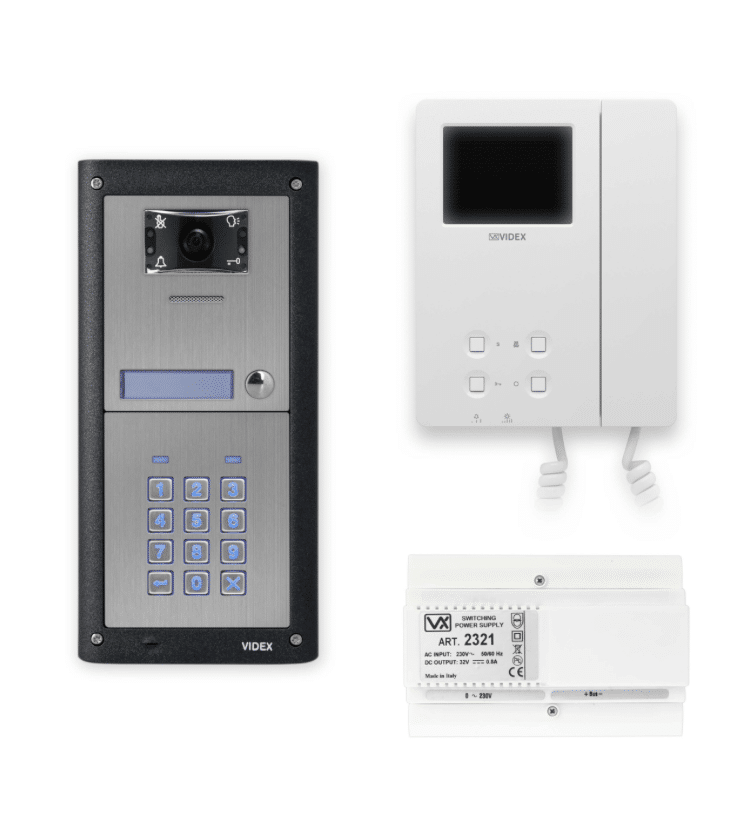

VIDEX Esvkc-1S/6286 4000 1-Way 2 Wire Video Kit Keypad And 6286 Videophone
Videx 4000 Series 1 Way 2 Wire Colour Video Kit With Codelock And 6286 Videophone
£649.25 exc VAT
- Surface mount video kit with 1 button (expandable up to 12 buttons)
- Videokits available with either 6200 series, 6300 series, 6400 series or 6700 series videophones
- Expandable up to 8 entrances (with additional 2301N multiple entrance switchers)
- Call a total of up to 4 videophones per call button
- Intercommunication between videophones in same apartment or between different apartments
- DDA compliant call progress LED's and reassurance tones
- High quality colour camera with 4 illumination LED's
- Selectable camera recall facility (including external camera input)
- Microphone, speaker volume and balance adjustments
- 4901 codelock module with 3 programmable codes, 3 dry contact relays with blue back-lit numeric keypad
- Codelock module with 2 PTE inputs (for relay 1 and 2 only)
- System: VX2300 videokits
- Power Input & PSU: 32Vdc (0.8A); 2321 PSU
- BUS system: “True” 2 wire digital bus (32V – 35Vdc)
- No. of Entrances: 1 (expandable up to 8 max. with 1x 2301N entrance switcher per 4 entrances, 2 max.)
- Max no. of buttons: 2 (expandable up to 12 with additional 4000 series button modules)
- Max. no. of videophones/monitors per button: 4
- Videophone/monitor options: 6286 videophone, 6388, 6488, 6788 and 6788BL hands free monitors
- Speaker/Camera module: 4384-1 (1 button kits), 4384-2 (2 button kits)
- Camera: CMOS camera with 4 white illumination LED’s (10° tilt adjustment)
- DDA Compliant: 4 call progress LED’s – BUSY, CALL, SPEAK and DOOR OPEN with call progress reassurance tones
- PTE Input: 1 (switched 0V push-to-make input)
- Lock Release: dry contact relay (C, NO and NC) with selectable capacitor discharge
- Codelock: 4901 – 3x C, NO and NC relay outputs (24Vac/dc – 5A max.), 12Vdc power input
- Power supply converter: 2322 (32V – 35Vdc BUS line input to 12Vdc output, 100mA)
