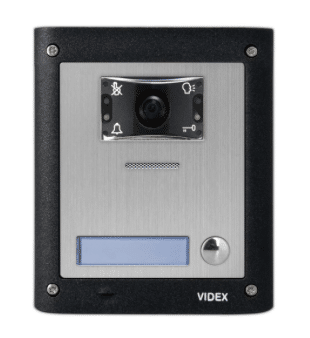

VIDEX Esvkx-1S/6286 4000 1-Way 2 Wire Video Kit Proximity And 6286 Videophone
Videx 4000 Series 1-Way 2 Wire Colour Video Kit With Proximity And Videophone
£521.00 exc VAT
- Available as 1 & 2 button colour videokits (however expandable up to 12 buttons)
- Flush or surface mount door entrance panels based on the 4000 series range
- Videokits available with either 6200 series, 6300 series, 6400 series or 6700 series videophones
- Expandable up to 8 entrances (with additional 2301N multiple entrance switchers)
- Call a total of up to 4 videophones per call button
- Intercommunication between videophones in same apartment or between different apartments
- DDA compliant call progress LED's and reassurance tones
- High quality colour camera with 4 illumination LED's
- Selectable camera recall facility (including external camera input)
- PTE input and built-in dry contact relay (including selectable capacitor discharge)
- Microphone, speaker volume and balance adjustments
- Built-in proximity reader (for up to 50 users)
- System: VX2300 videokits
- Power Input & PSU model: 32Vdc (0.8A); 2321 PSU
- BUS system: “True” 2 wire digital BUS (32V – 35Vdc)
- No. of Entrances: 1 (expandable up to 8 max. with 1x 2301N entrance switcher per 4 entrances, 2 max.)
- Max. No. of call buttons: 2 (expandable up to 12 buttons with additional 4000 series button expansion modules)
- Max. No. of videophones per call button: 4
- Videophone Options: 6286, 6388, 6488 or 6788
- Speaker/Camera Module: 4384X-1 (1 way videokits); 4384X-2 (2 way videokits)
- Camera: High Quality CMOS camera with 4x white illumination LED’s (10° tilt adjustment)
- DDA Compliant: 4 call progress LED’s – BUSY, CALL, SPEAK and DOOR OPEN with call progress reassurance tones
- Proximity: Yes (behind namplate window) up to 50 users max.
- Compatible Prox. Cards/Fobs: 955/C (card), 955/T (fobs)
- PTE Input: 1 (switched 0V push-to-make input)
- Lock Release: dry contact relay (C, NO and NC) with selectable capacitor discharge
- Recommended Cable: Videx CM2 or CAT5 UTP (unscreened twisted pair) – note that additional cabling will be required for lock release connections and/or 3rd party devices.
- Max. Cable Distance using CM2: up to 400m total (200m between panel and PSU and then a further 200m between PSU and videophone)
- Max. Cable Distance using CAT5 UTP: up to 140m total (70m between panel and PSU and then a further 70m between PSU and videophone)
