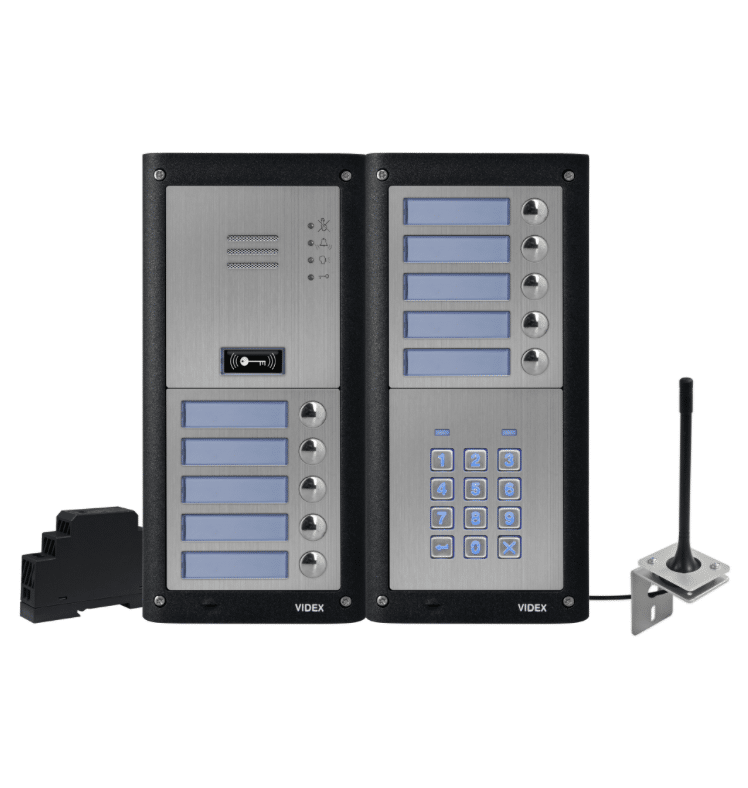

VIDEX GSM4KCR-10S/M/4G 10 Button 4G Gsm Intercom Keypad

• This is a simple to install 4G GSM 10 button intercom that is suitable for ten user residential properties or a small office
• The intercom has 10 call buttons on one entrance panel
• Using mobile phone technology, a call will be made to the occupants phone, removing the need to be in the house to answer the door or gate
• It is possible to open your gate while you are not at home
• This intercom allows 2 way communication between occupants and the caller
• Available with or without a keypad

• Intercom for one entrance: simple intercom for one user
• Two way speech
• Backlit name plate
• Sim Card: sim card is required for set up for call through to the occupants phone
• Calls up to 5 devices: if the phone call isn’t answered, the next number is called
• Easy programming: easily done by SMS or dialing into the panel using a telephone with a keypad
• Surface Mounted: intercom with a mirror stainless steel facia and gun metal surround
• Push to exit input (codelock version): the popular 4903 keypad with 3 relays, 2x exit button inputs and programmable (Through the keypad) with up to three 4-8 digit codes
• Multiple phone numbers: the intercom allows the calling of two telephone numbers per button

• Up to 50 call buttons
• 4 telephone numbers per call button (1 primary and 3 diverts)
• 1000 dial to open numbers
• 1000 user integrated proximity access
• Voice annunciation
• 4 Call progress LED’s
• Programming by SMS or PC software
• Push to exit input
• 2 auxiliary inputs
• 2 auxiliary outputs
• Dry contact relay
• Micro USB connection
• RS485 bus connection

DATASHEET

GSM4KCR
